SRT-7600 Small Portable Surface Profilometer Profile Tester

Large Image : SRT-7600 Small Portable Surface Profilometer Profile Tester

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	SRT-7600
Document:	SRT-7600 Portable surface S...er.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Packaging Details:	Carton packing box
Delivery Time:	10-15 working days after receipt of your payment
Payment Terms:	T/T,Paypal
Supply Ability:	10sets/Month

Contact Now

SRT-7600 Small Portable Surface Profilometer Profile Tester

Description

X Direction:	50mm	Z Direction:	±5mm
Data Output:	PDF/WiFi Print	Corresponding Language:	Chinese/English
Power Supply/Consumption:	AC220V±10% Or UPS Power
Highlight:	portable surface profilometer tester , small profile tester for surfaces , surface profilometer with warranty

SRT-7600 Small Portable Surface Profilometer Profile Tester

SRT-7600 small profilometer is a brand-new product launched by our company. It is used to describe the surface structure of processed parts and is suitable for detection in environments such as workshop verification stations, laboratories, and metrology rooms. It is also applicable for on-site and in-place metrology. It can evaluate geometric parameters such as convexity and inclination Angle, as well as surface shapes like roughness profile, waviness profile, original profile, support rate curve and graphics. The measurement parameters include those from China, Japan, the United States, Germany and various ISO standards. It has a user-friendly software interface and convenient operation habits. We have designed configurations on the software that can record different operation scenarios. When measuring different workpieces, there is no need for complicated Settings. Just select the configuration and measure with one click.

Technical data

Model					SRT-7600
Range		X Direction			50mm
		Z Direction			±5mm
Resolution		Z Direction			0.016μm/±500μm ~ 0.16μm/±5mm
Driver		Straightness			1μm/50mm
Analysis algorithm		Corresponding standard			JIS-82,JIS-87,JIS-94,JIS-01,JIS-13,ISO-84,ISO-97,DIN-90,ASME-95,GB-14
		Parameter	Roughness profile		Ra75,Rq,Rp,Rv,Rc,Rt,S,R3z,PPI,Ra,Rsk,Rku,Ry,Sm,RΔa,RΔq,Rz,Pc,Rλa,Rλq,lr,RSm,Rz94,RPc,RS,Rz.I,Rpm,HSC
			Waviness profile		WCA,WCC-q,WCC-p,WCC-v,WCC-m,WCC2Sm,WCA,WC-q,WC2p,WC-v,WCM,WC2Sm,WC-t,Wa,Wq,Wsk,Wku,Wp,Wv,Wz,Wc,Wt,WSm,WΔq,WPc
			Original outline		Rsk,Rku,Rmax,Sm,Δa,Δq,Rz,λa,λq,lr,TILT A,AVH,Hmax,Hmin,AREA,Rz.J,Pa,Pq,Psk,Pku,Pp,Pv,Pc.I,Pt,PSm,PΔq,PPc,Pc
			Support rate curve		Rk,Rpk,Rvk,Mr1,Mr2,V0,K,A1,A2
			Graphic		NCRX,AR,R,Rx,NR,CPM,SR,SAR,AW,W,Wx,Wte,NW,SW,SAW,Rke,Rpke,Rvke,Mr1,Mr2,V0,K
			Geometric tolerance		Convexity, inclination, straightness, perpendicularity, parallelism, runout
		Evaluation curve			Roughness profile, waviness profile, original profile, support rate curve, graph
		Characteristic curve			Support rate curves (Rmr(c), Rmr2(c), Rδc(c), tp(c), tp2(c), Htp(c)), amplituder-frequency analysis curves, amplitude distribution curves
		Shape removal			Global domain, first half, second half, center, 2 points, curve
		Filter type			Gaussian,FFT,PC,DP,2RC
		Filter stop wavelength		λs	0,2.5,8,25μm
				λc	0.08,0.25,0.8,2.5,8mm
				λf	0.8,2.5,8,25mm
Evaluation length					Sampling length × number of samples The sampling length has standard mode and custom mode.
Measurement speed					0.05mm/s,0.10mm/s,0.50mm/s,1.00mm/s,2.00mm/s
Return speed					0.05mm/s,0.10mm/s,0.50mm/s,1.00mm/s,2.00mm/s
Sensor	Model				Standard universal type
	Sensor method				Differential inductor
	Range				±50mm
	Measuring needle				5μmR Diamond at 90°, 10μmR Diamond at 90°, optional
	Force measurement				7.5mN (adjustable)
Operating machine	Display section				Computer
	Data output				PDF/WiFi Print
	Corresponding language				Chinese/English
Size and weight	Power supply/Consumption				AC220V±10% or UPS power
	Power consumption				About 50VA
	Weight				Net weight: 5Kg It contains 10Kg of packaging
	Set size				Actuator 350(L)×116(W)×146(H)

Features

*High-precision large-travel guide rails, with a length of up to 50mm

*The sensor range is ±5mm

*It adopts a combination form of a main unit and a computer all-in-one machine, which is convenient to carry and suitable for on-site measurement

*The parameters are complete, including geometric tolerances, surface shapes and multiple national standards

*The lead-free measurement provides a more realistic feedback on the topography of the machined surface

*The probe can be directly replaced, and the replacement operation is convenient, which can achieve measurement in different scenarios

*The sensor can be freely switched in the same direction as the guide rail. The depth measurement groove can be measured from the side without being restricted by the depth of the measuring needle and the groove

*Support the switching between metric and imperial systems for the operation interface and result parameters

*Supports switching between Chinese and English languages

*The analysis algorithm including multiple filtering methods can be freely combined to meet the requirements

*Supports automatic multiple calibrations of standard blocks, significantly reducing calibration errors

Standard configuration:

Host actuator	1 pc
Sensor	1 pc
Desktop computer or laptop	1 pc
Standard probe	1 pc
Roughness standard test block	1 pc
Product Qualification Certificate	1 pc
Product Manual	1 pc
Warranty card	1 pc
Main unit waterproof box	1pc
Random tool	internal hexagonal wrench (2.5mm) 1pc

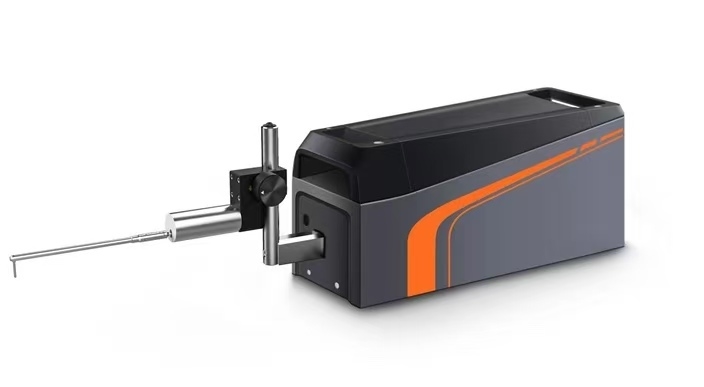

SRT-7600 Small Portable Surface Profilometer Profile Tester 0

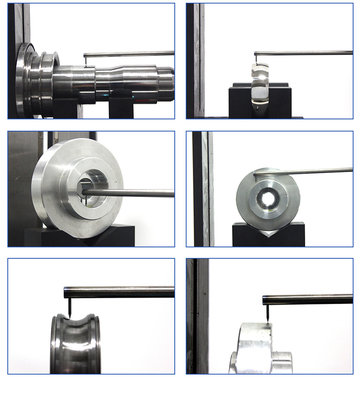

SRT-7600 Small Portable Surface Profilometer Profile Tester 1
