SRT5060 7 parameters High Precision Handheld OLED display Surface Roughness Tester

Large Image : SRT5060 7 parameters High Precision Handheld OLED display Surface Roughness Tester

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	SRT5060
Document:	SRT5060 7 parameters Ra,Rz,...er.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	US$565.00 - 637.00/set
Packaging Details:	Outer carton packaging
Delivery Time:	3-5 working days after receipt of your payment
Payment Terms:	T/T,Western Union,Paypal
Supply Ability:	10 Sets/Month

Contact Now

SRT5060 7 parameters High Precision Handheld OLED display Surface Roughness Tester

Description

Parameters:	Ra, Rz, Rq, Rt, Rp, Rv, Rc	Range:	±80um
Display Accuracy:	±10%	Indication Variability:	≤6%
Resolution:	0.01um	Max. Driving Length:	6mm
Highlight:	handheld surface roughness tester , high precision roughness tester , OLED display roughness tester

SRT5060 7 parameters High Precision Handheld OLED display Surface Roughness Tester

Features

l 7 parameters Ra, Rz , Rq, Rt, Rp, Rv, Rc

l High precision inductive sensor

l GAUSS filter

l Comply with ISO4287

l 256X64 OLED display

l Built in lithium ion battery and charging control circuit, high capacity, no memory effect

l Continuous working time more than 15 hours

l Aluminum mold design makes durable and better anti-electromagnetic interference ability

Specification

Parameters		Ra, Rz, Rq, Rt, Rp, Rv, Rc
Range		±80um
Display Accuracy		±10%
Indication variability		≤6%
Resolution		0.01um
Probe features	Type	Inductive
	Stylus radius/angle	5um
	Stylus material	Diamond
Measuring force		4mN(0.4gf)
Measuring unit		Um/uin
Sensor angle		90 degree
Longitudinal radius of guide head		45mm
Max. driving length		6mm
Traverse speed		λ1: cut off =0.25mm, Vt=0.135mm/s λ2:cut off =0.8mm, Vt=0.5mm/s λ3: cut off =2.5mm, Vt=1mm/s
Power		Built-in Rechargeable battery

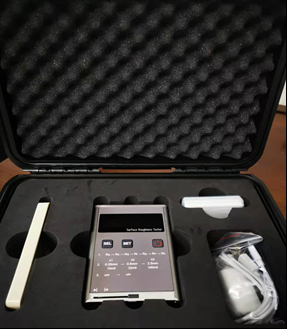

Standard Delivery

l Main unit

l Calibration block

l AD/DC adapter and data line

l Testing support board

l Carrying case

l English instruction manual

l Calibration certificate

l Warranty card

l Packing list
