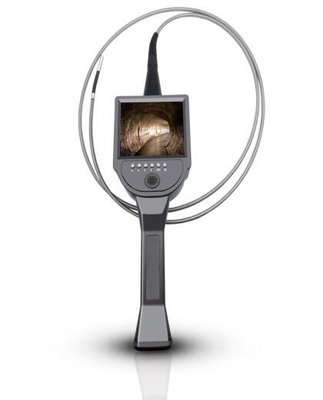

HTD-D Series 4-Way With 5-Inch HD Display Industrial Endoscope

HTD-D Series 4-Way With 5-Inch HD Display Industrial Endoscope
HTD-D Series 4-Way With 5-Inch HD Display Industrial Endoscope
HTD-D Series 4-Way With 5-Inch HD Display Industrial Endoscope HTD-D Series 4-Way With 5-Inch HD Display Industrial Endoscope HTD-D Series 4-Way With 5-Inch HD Display Industrial Endoscope HTD-D Series 4-Way With 5-Inch HD Display Industrial Endoscope

Large Image :  HTD-D Series 4-Way With 5-Inch HD Display Industrial Endoscope

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO,CE
Model Number: HTD-D8
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: carton packaging
Delivery Time: 7-10 working days after payment
Payment Terms: L/C,T/T,Western Union
Supply Ability: 50 Sets per Month
Contact Now

HTD-D Series 4-Way With 5-Inch HD Display Industrial Endoscope

Description
Product Name: Industrial Electronic Endoscope Direction Of Observation: Direct Vision
Focal Length: Fixed Probe Diameter: Φ6mm/Φ8mm/Φ10mm/Φ12mm
Depth Of Field: 10mm-∞/20-150 Probe Bending Direction: 4 Way
Highlight:

4-way industrial endoscope with HD display

,

industrial endoscope with 5-inch screen

,

non-destructive testing endoscope with warranty

HTD-D Series 4 Directions Industrial Electronic Endoscope
The HTD-D series industrial endoscope features electric control for precise 4-direction rotation of the speculum head, enabling flexible positioning and effortless operation. With its integrated handheld design, high-definition imaging, and versatile functionality, this endoscope provides reliable inspection capabilities across various industrial applications.
Key Features
  • Integrated design: Lightweight (0.88kg) for easy portability and one-handed operation
  • Precision control: Electric 4-way directional control with micro-movement adjustment
  • Durable construction: Multi-layer stainless steel/tungsten wire mesh for corrosion and wear resistance
  • High-definition display: 5-inch TFT true color screen with 450,000 pixel resolution
  • Adjustable lighting: High-brightness LED with multiple brightness levels
  • Advanced imaging: Photo capture, video recording, and USB connectivity for data transfer
  • Extended operation: 8GB memory with 3-4 hours battery life from ultra-low power consumption
  • Customizable options: Available with infrared or wireless control upgrades
Technical Specifications
Parameter Specification
Product Name HTD-D Series Industrial Electronic Endoscope
Optical System Direct vision observation
Field Angle ≥70°
Probe Diameter Φ6mm/Φ8mm/Φ10mm/Φ12mm
Probe Bending Angle ≥120° (4-way control)
Working Length 1.5m (customizable)
Display 5" TFT true color (250cd/㎡ brightness)
Image Resolution >720×625 (450,000 pixels)
Light Source High brightness LED
Storage 8GB SD card (JEPG, MPEG4 formats)
Power Built-in rechargeable battery
Interfaces USB 2.0, AV OUT
Operating Mode Handheld portable control
Applications
This industrial endoscope is widely used in automotive engine inspection, steel pipe and casting evaluation, container defect detection, aerospace maintenance, power industry applications, and various civil and law enforcement inspection scenarios.
