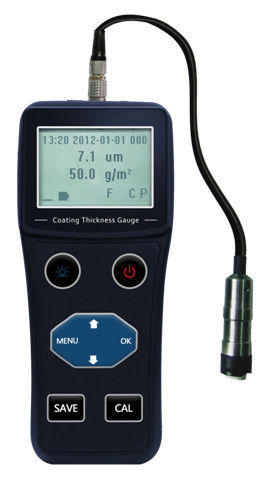

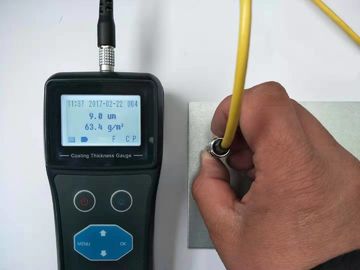

TG-6102 High precision Bluetooth Communication Realtime Online Measurement Coating Thickness Gauge

Probe Type

F (Magnetic)

N (Non-magnetic)

Usage

Non-magnetic coating on magnetic metal substrate

Non-conductive coating on non-magnetic metal substrate

Measure Range

0 ~ 1500 um

0 ~ 1500 um

0 ~ 40 um, for Chromium on Copper

Min. Radius of Curvature

Bulge 1.5 mm

Bulge 3 mm

Min. Radius of Area

Φ7 mm

Φ5 mm

Critical Thickness of Plate

0.5 mm

0.3 mm

Accuracy

Zero / One-Point Calibration

±(2%H+1) um

Two-Point Calibration

±[(1~2)%H+1] um

Basic Calibration

±(1%H+1) um

Resolution

0.1 um(0 ~ 99.9 um),1um(100 ~ 1500 um)

Measuring Period

3 times per second

Calibration Mode

Zero, One-Point, Two-Point and Basic Calibration

Measuring Mode

Single point, scan mode, differential mode, alarm mode

Display

English / Chinese selectable, FSTN LCD Display with backlight

Display Content

Coating Thickness Value, Time, Stability, Battery, Measuring Mode, etc.

Storage

500  measurements, including time, probe type, etc.

Communication

Bluetooth & Mini-USB interface, virtual serial port protocol, support online measurement with PC or Smart Phones, host software upgradable

Print

Optional portable Bluetooth thermal printers

Power Supply

3 * AAA alkaline batteries for 100 hours usage (close backlight)

Power off

Timeout power off, and low battery power off

Temperature

Usage: -10 ~ 50 °C, Store: -30 ~ 60 °C

Size

150mm * 70mm * 30mm

Material

ABS and PC alloy

Weight

180g
