HVS-1000 Touch Screen Digital Display Micro Vickers Hardness Tester

HVS-1000 Touch Screen Digital Display Micro Vickers Hardness Tester

Detailed Product Description

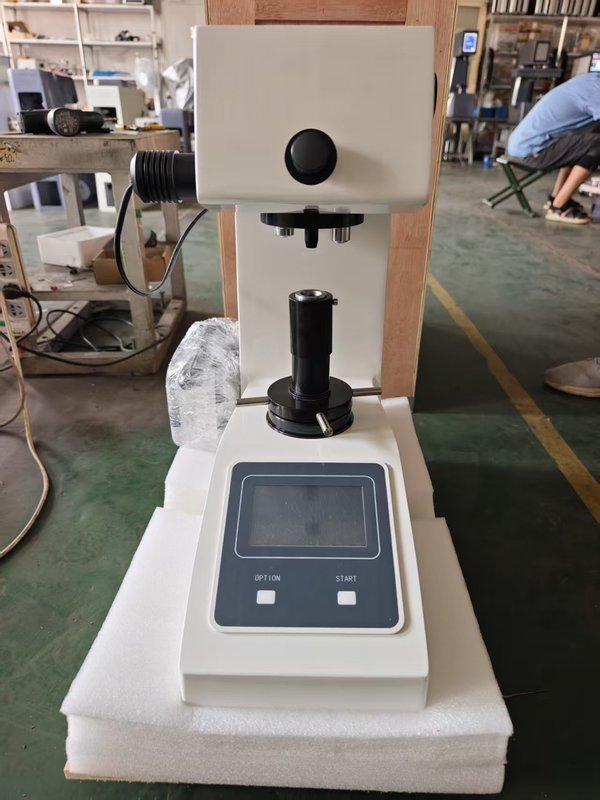

·    Model HVS-1000 digital micro hardness tester is an integrated optical, mechanical and electrical popularized type micro hardness tester

·    This tester adopts programming by computer software, high magnification optical measuring system and photo electric sensor etc such technique

·    By means of input by membrane switches, it may adjust the measurement of either strong or weak light source, preset the holding time for test force or load, cut and change either the Vicker's of Knoop's test method

·    The hardness tester is also equipped with photographic device that may take photo of all measured indentation and the metallographic formation of materials

·    It is suitable to measure the micro hardness of small, thin specimen, and superficial permeable coating (or plating) layer etc such specimen, as well as to measure the micro hardness of glass, ceramics, agate, and gem etc such brittle materials

Specifications

Standard delivery

Main unit                                                                  1

10 x objective                                                         1

Weight shaft                                                            1

Cross testing table                                                1

Screwdriver                                                            2

Level                                                                           1

Fuse 1A, 2A                                                             2

Certificate                                                                1

Manual                                                                      1

Micro Vickers indenter                                     1

40 x objective                                                       1

Weight                                                                      6

Fine wire holder                                                    1

Horizontal adjusting screw                              4

Lamp (6V/2 W)                                                     2

Manual for printer                                               1

10 x micrometer eyepiece                                1

Micro Vickers hardness test block (medium)    1

Optional accessories

Depending on customer demand
