Handheld Non-Metallic Ultrasonic Coating Thickness Gauge with Wide Measuring Range and High Precision

Handheld Non-Metallic Ultrasonic Coating Thickness Gauge with Wide Measuring Range and High Precision
Handheld Non-Metallic Ultrasonic Coating Thickness Gauge with Wide Measuring Range and High Precision Handheld Non-Metallic Ultrasonic Coating Thickness Gauge with Wide Measuring Range and High Precision

Large Image :  Handheld Non-Metallic Ultrasonic Coating Thickness Gauge with Wide Measuring Range and High Precision

Product Details:
Place of Origin: Beijing, China
Brand Name: HUATEC
Certification: CE,ISO
Model Number: TG-6200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: ABS+CARTON
Delivery Time: 5-8 work days
Payment Terms: T/T,Western Union
Contact Now

Handheld Non-Metallic Ultrasonic Coating Thickness Gauge with Wide Measuring Range and High Precision

Description
Measuring Range: 20um – 1800mm Measurement Frequency: 4Hz、8Hz、16Hz
Resolution: 0.1mm、0.01mm、0.001mm（0.01inch、0.001inch、0.0001inch） Calibration Block: 4mm(steel)
Detection Mode: RF, Positive Half Wave POS, Negative Half Wave NEG, FULL Wave
Highlight:

Handheld Ultrasonic Coating Thickness Gauge

,

Non-Metallic Ultrasonic Coating Thickness Gauge

,

Ultrasonic Coating Thickness Gauge

TG-6200 Handheld Non-Metallic Ultrasonic Coating Thickness Gauge
A precision handheld ultrasonic coating thickness gauge designed for measuring ultra-thin films and coatings on both metallic and non-metallic substrates. Features numerical display and A/B scanning functions with high measurement resolution up to 0.001mm.
Key Features
  • Wide measuring range: 20μm - 1800mm
  • High precision measurement with resolution up to 0.001mm
  • Multiple measurement modes: A-scan, B-scan, and numerical display
  • Through-coating and echo-to-echo measurement capabilities
  • Can measure up to 10 multi-layer materials simultaneously
  • Multiple measurement modes: THIN, MB-E, E-E, and Auto mode
  • Supports various probe types including twin probes and single crystal probes
  • Large capacity storage: 100,000 thickness values, 500 A-scan and 500 B-scan waveforms
  • Multiple calibration methods including one-point, multi-point, and manual calibration
  • Imperial/metric unit conversion (mm/inch)
  • 3.5" true color display with English interface
Applications
Suitable for measuring coating thickness on metal (steel, cast iron, aluminum, copper) and non-metal (glass, plastic, composite, concrete, wood) substrates. Widely used in petroleum, chemical, metallurgy, shipbuilding, aerospace, and energy industries.
Measurement Principle
Utilizes pulsed reflection ultrasonic thickness measurement technology for materials where ultrasonic waves propagate at constant speed and reflect from the back surface.
Technical Specifications
Parameter Specification
Probe type Single crystal/twin crystal
Measuring range 20μm - 1800mm
Measurement frequency 4Hz, 8Hz, 16Hz
Resolution 0.1mm, 0.01mm, 0.001mm (0.01inch, 0.001inch, 0.0001inch)
Sound velocity range 400-19999m/s
Measurement modes THIN-EE, MB-E, E-E, THIN
Display 3.5" true color screen
Operating temperature -10℃ to +50℃ (special requirements to -20℃)
Dimensions 184 x 85 x 32 mm
Weight 250g (battery not included)
Standard Configuration
Main unit, 1 special coating probe, 3 No. 5 lithium batteries, charger, documentation set, shock-proof and waterproof instrument case.

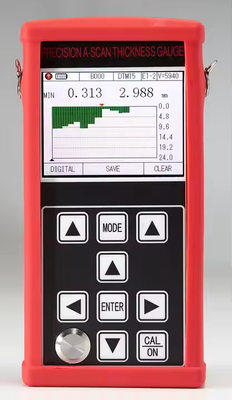

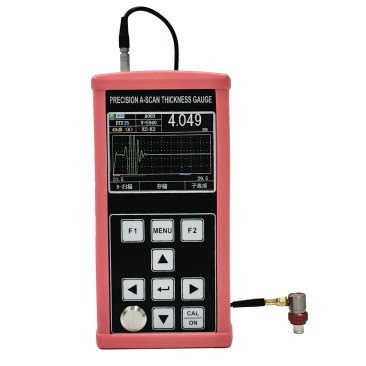

Product Images
Handheld Non-Metallic Ultrasonic Coating Thickness Gauge with Wide Measuring Range and High Precision 0 Handheld Non-Metallic Ultrasonic Coating Thickness Gauge with Wide Measuring Range and High Precision 1
