Vacuum Box Weld Leakage Detector with 60kPa Vacuum Degree 400mm Weld Detection Length and 85kg Suction Force Electromagnets

Large Image : Vacuum Box Weld Leakage Detector with 60kPa Vacuum Degree 400mm Weld Detection Length and 85kg Suction Force Electromagnets

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	ISO,CE
Model Number:	HV1800F

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Packaging Details:	in carton
Delivery Time:	5~8 days after payment
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	50sets per month

Contact Now

Vacuum Box Weld Leakage Detector with 60kPa Vacuum Degree 400mm Weld Detection Length and 85kg Suction Force Electromagnets

Description

Product Name:	Vacuum Box Weld Leakage Detector	Model:	HV1800F
Vacuum:	Not Less Than 60kP	Tank Diameter:	≥5m
Weld Detection Length:	Not Less Than 400mm	Lighting System:	LED Lighting System In Vacuum Box
Highlight:	60kPa Vacuum Degree Weld Leakage Detector , 400mm Weld Detection Length Vacuum Box Detector , 85kg Suction Force Electromagnets Weld Leakage Detector

Vacuum Box Weld Leakage Detector

Our vacuum tank detection system is specially designed for detecting weld leakage on oil storage tank bottom plates, providing an efficient, fast, and economical detection method with a detection rate of penetrating corrosion/pinholes not less than 95%.

Product Introduction

Designed for comprehensive inspection of oil storage tanks, our vacuum box detection system can detect:

Lap/butt welds on bottom plates of any size storage tanks
Circumferential welds (fillet welds) on bottom plates of storage tanks with diameter ≥5 meters

Special Features

Foot-operated design eliminates need for manual pressing or bending
Integrated wheels for easy movement without lifting
Optional remote-controlled vacuum pump operation

Technical Parameters

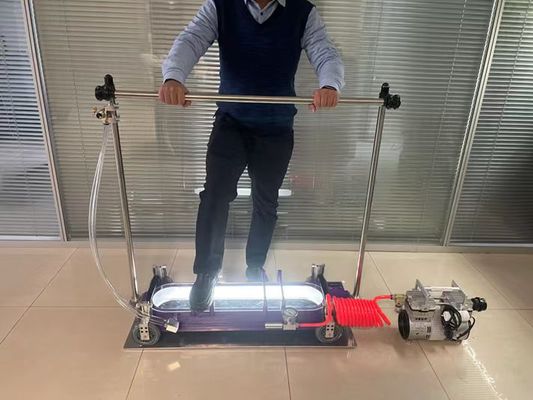

Vacuum Box for Lap and Butt Welds

Parameter	Specification
Vacuum degree	≥60kPa
Weld detection length	≥800mm
Weld types	Lap and butt welds at tank bottom
Operation mode	Standing operation
Lighting system	LED with built-in 3Wh lithium battery (≥16 hours)
Mobility	4 spring-loaded wheels for easy movement

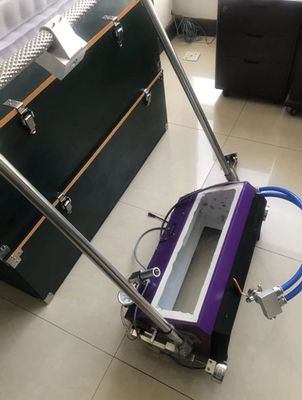

Vacuum Box for Girth Welds

Parameter	Specification
Vacuum degree	≥60kPa
Weld detection length	≥400mm
Weld types	Fillet welds
Tank diameter	≥5m
Additional features	2 electromagnets (85kg suction) and 2 pushrod motors (19kg thrust)

Vacuum Pump Specifications

Parameter	Specification
Voltage	220V 50/60Hz
Design pressure	92kPa
Flow rate	200L/min
Weight	≤10.5kg
Power	≤450W

Model Comparison

Parameter	HV1800F-LED (Butt/Lap Weld)	HC1400-LED (Fillet Weld)
Size	936318187mm	660310380mm
Weight	11kg	8.95kg
Vacuum degree	20inch Hg	20inch Hg
Weld detection length	750mm	400mm
Tank diameter	All sizes	≥5m

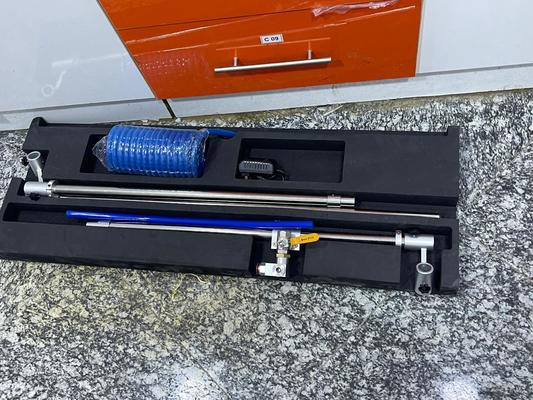

Standard Configuration

Vacuum pump: 1pc
Lap and butt weld vacuum box: 1 set
Fillet weld box: 1 set
Soft air pipe: 1 set
Vacuum pump power supply battery: 1pc
Manual: 1 copy
Shipping boxes: 3pcs
