NDT Magnetic Flaw Detector Accessories Dead Weight test Block N1

Large Image : NDT Magnetic Flaw Detector Accessories Dead Weight test Block N1

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Model Number:	N1

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	5-8 wprking days
Payment Terms:	T/T,Western Union

Contact Now

NDT Magnetic Flaw Detector Accessories Dead Weight test Block N1

Description

Standard:

ASME

Use:

Magnetic Particle Testing For Electromagnetic Calibration

Industry:

NDT Magnetic Particle Testing

Weight:

45N Lifting Force Test Block, 5kg

Highlight:

NDT magnetic flaw detector

dead weight test block N1

non-destructive testing accessories

NDT Magnetic Flaw Detector Accessories Dead Weight test Block N1

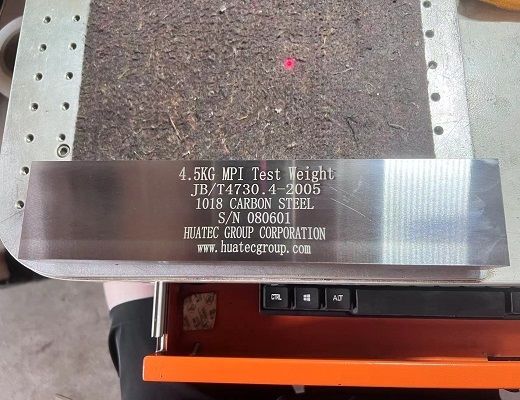

The magnetic particle lifting force test block is used to verify the lifting force of the portable magnetic particle flaw detector
The fundamental purpose of testing the lifting force is to test the effective magnetic flux introduced by the yoke into the
workpiece, so as to measure the performance of the yoke.
Lifting force refers to the attractive force of the magnetic yoke of the portable magnetic particle flaw detector to the
ferromagnetic material at the maximum magnetic pole spacing.
The lifting force of the yoke depends on the cross-sectional area of the core of the yoke, the magnetic properties of the core

Standard	ASME JB/T6066-2005
Material	No. 45 steel
Type of blank	forging
Heat treatment state	normalizing treatment

N1 type	45N lifting force test block	5KG
N2 type	118N lifting force test block	12KG

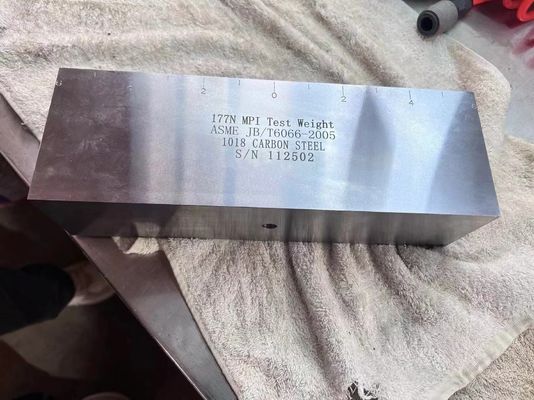

N3 type	177N lifting force test block	18KG

material and the size of the excitation specification. The lifting force of the yoke reflects the attractive force of the
corresponding yoke when the peak value B of the magnetic induction intensity of the yoke reaches a certain level.
When using the maximum distance between the yokes, the AC electromagnetic yoke should have a lifting force of at least 45N; the DC
electromagnetic yoke should have a lifting force of at least 177N; the cross yoke should have a lifting force of at least 118N
(the gap between the magnetic pole and the workpiece surface is 0.5mm) .

NDT Magnetic Flaw Detector Accessories Dead Weight test Block N1 0
