DG-800 Oil Drilling Pipe UV Ultraviolet Detection light Endoscope

Large Image : DG-800 Oil Drilling Pipe UV Ultraviolet Detection light Endoscope

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	DG-800

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	USD2645/set - USD2990/set
Packaging Details:	Carton packing box
Delivery Time:	7-10 working days after receipt of your payment
Payment Terms:	T/T,Paypal
Supply Ability:	10sets/Month

Contact Now

DG-800 Oil Drilling Pipe UV Ultraviolet Detection light Endoscope

Description

UV Irradiance:	2500uW/cm2 (5cm Distance)	Camera Resolution:	20481536, Maximum Resolution 32642448
Camera:	800W	Cable Length:	2 Meters, Can Be Customized To 15meters
Water Proof Type:	IP65
Highlight:	oil drilling pipe UV endoscope , UV detection light for pipes , non-destructive testing endoscope with UV

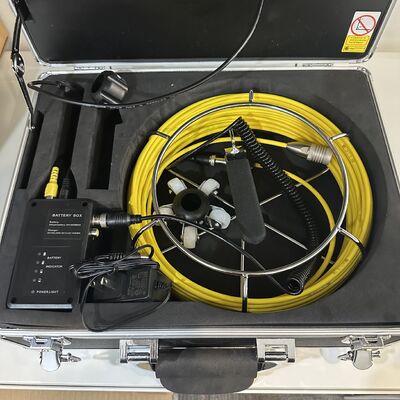

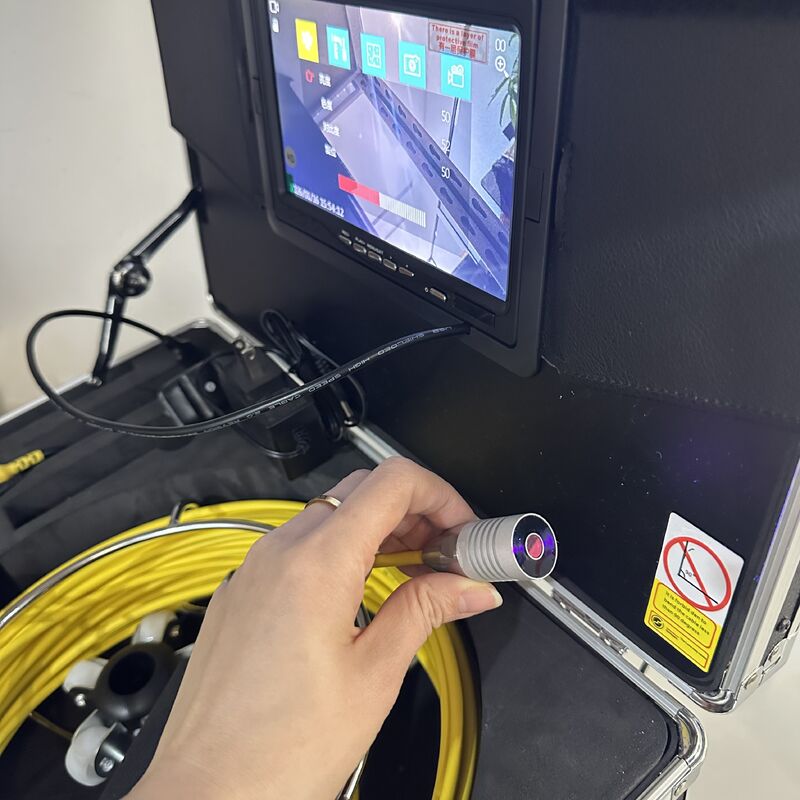

DG-800 Oil Drilling Pipe UV Ultraviolet Detection light Endoscope

Application:

Used for oil drilling pipe, is by natural gas pipeline and other linear pipeline ultraviolet detection, heat exchanger tube internal inspection with recording.

Specifications:

Camera	800W
UV irradiance	2500uW/cm²(5cm distance)
Focus	automatically
White light	included
Probe size	25*21mm
Water proof type	IP65
Interface	USB2.0 Can connect with pc through software, to store data into computer
Camera resolution	20481536, maximum resolution 32642448
Working direction	The side view and front view are all possible, can move 360deg inside
UV camera type	articulated, camera is fixed in one direction and rotate it to view all four walls of tube
Cable length	2 meters, can be customized to 15meters
Weight	215g

DG-800 Oil Drilling Pipe UV Ultraviolet Detection light Endoscope 0
