DG-4020 Dual AC&DC operation handheld LED-UV Lamp

Large Image : DG-4020 Dual AC&DC operation handheld LED-UV Lamp

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Model Number:	DG-4020

Payment & Shipping Terms:

Minimum Order Quantity:	1
Payment Terms:	T/T,Western Union
Supply Ability:	carton

Contact Now

DG-4020 Dual AC&DC operation handheld LED-UV Lamp

Description

Name:

Handheld LED-UV Lamp

Standard:

ASTM E3022

Application:

Observation Light Source For Fluorescence Detection

UV(Light)-FLUX:

6000uW/cm2

Highlight:

handheld LED-UV lamp

dual AC DC UV lamp

non-destructive testing UV light

DG-4020 Dual AC&DC operation handheld LED-UV Lamp

The ultraviolet lamp in industrial NDT is mainly used to excite fluorescent materials to emit light, thereby making visible defects or traces that are not visible under visible light. It is a key tool for observing and enhancing defect display.
Core application: Observation light source for fluorescence detection.

Project	Parameter / mode
Style	Handheld
UV(Light)-FLUX Indoor temperature 25℃	6000uW/cm²
White light content	≤3LUX
Irradiation area at depth of 380mm: (≥1000uw/cm²)	Φ300mm
Flux error	0-40℃ ±10%
Light distribution characteristics	Central light distribution
Power Supply	AC100- 240V,50/60Hz
Power	UV LED-12VA
Wavelength	Room temperature 25℃, 365nm±3nm (UVA)
Overall dimension	157. 5mm (W) 76mm (D) 177mm (H)
Weight	560g including battery

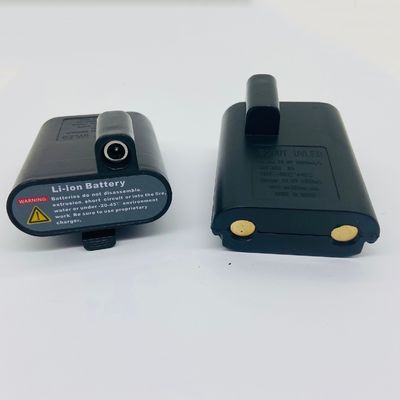

Battery capacity	2200mA/H 12.6V
Charging time	2-3H
Battery life (cumulative time)	UV LED 2-3H

The ultraviolet lamp itself is not a detection method, but a key equipment used in conjunction with specific detection materials (mainly fluorescent penetrant and fluorescent magnetic powder).

DG-4020 Dual AC&DC operation handheld LED-UV Lamp 0

DG-4020 Dual AC&DC operation handheld LED-UV Lamp 1

DG-4020 Dual AC&DC operation handheld LED-UV Lamp 2

DG-4020 Dual AC&DC operation handheld LED-UV Lamp 3
