TG5000 Series A/B Echo-Echo Ultrasonic Thickness Gauge

TG5000 Series A/B Echo-Echo Ultrasonic Thickness Gauge
TG5000 Series A/B Echo-Echo Ultrasonic Thickness Gauge TG5000 Series A/B Echo-Echo Ultrasonic Thickness Gauge TG5000 Series A/B Echo-Echo Ultrasonic Thickness Gauge TG5000 Series A/B Echo-Echo Ultrasonic Thickness Gauge

Large Image :  TG5000 Series A/B Echo-Echo Ultrasonic Thickness Gauge

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO,CE
Model Number: TG-5000D
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: in carton
Delivery Time: 5~7 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500sets per month
Contact Now

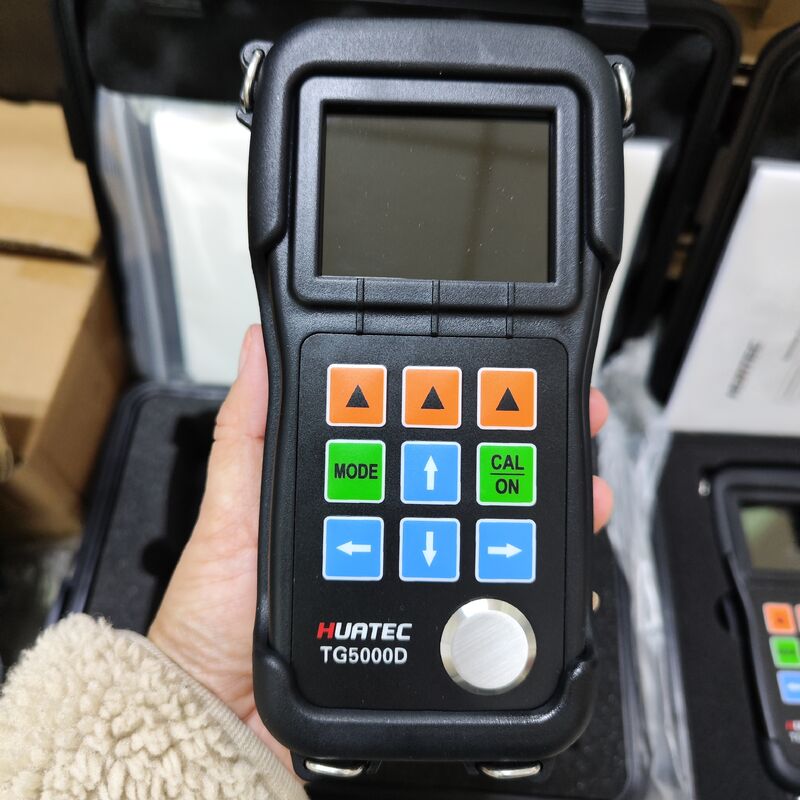

TG5000 Series A/B Echo-Echo Ultrasonic Thickness Gauge

Description
Product Name: Ultrasonic Thickness Gauge Display Type: 2.4" Color OLED, 320 X 240 Pixels, Contrast 10,000:1
Operating Principle: Pulse Echo With Dual Element Transducers Units: Inch Or Millimeter
Highlight:

ultrasonic thickness gauge TG5000

,

A/B echo thickness tester

,

non-destructive testing equipment with warranty

TG5000 Series A/B Echo-Echo Ultrasonic Thickness Gauge



  • Color OLED 320x240 Pixels Display
  • Live Simultaneous Color A-Scan and Thickness Display
  • Control of Gain, Blanking, Gate, Range, Delay, RF and Rectify Modes Time-based B-Scan Display
  • Echo-Echo Mode(Thru Paint & Coatings)
  • Stores 100,000 Readings and 1000 waveform
  • Technical Specifications

Technical Specifications

Display Type 2.4" color OLED, 320 X 240 pixels, contrast 10,000:1
Operating Principle Pulse echo with dual element transducers
Measuring Range 0.50mm to 508mm(0.02" to 20.00"), depending on material, probe and surface condition
Measuring Resolution Selectable 0.01mm, 0.1mm(selectable 0.001", 0.01")
Units Inch or Millimeter
Rectify Modes RF+, RF-, HALF+, HALF-, FULL
Display Mode Normal, Minimum / Maximum capture, DIFF/RR%, A-Scan, B-Scan
V-Path Correction Automatic
Update Rate Selectable 4Hz, 8Hz, 16Hz
Material Velocity Range 500 to 9999m/s (0.0197 to 0.3937in/us)
Languages English
Alarm Settings Minimum and Maximum alarms. Range of 0.25 mm to 508 mm (0.010" to 20.00"). Dynamic waveform color change on alarm
Power Requirements 2 AA size batteries
Operating Time Approximately 40 hours
Instrument Shut-off Selectable ALWAYS ON or AUTO OFF after 5, 10, 20 minutes of inactivity
Operating Temperature -10°C to +50°C (+10°F to +120°F)
Size 153mm × 76mm ×37mm(H ×W ×D)
Weight 280g including batteries

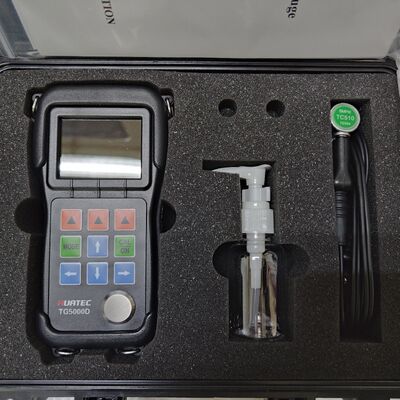

STANDARD CONFIGURATIONS

NAME NUMBER
THICKNESS GAUGE 1
PROBE 1
ALKALINE BATTERY 2
COUPLANT 1
CARRYING CASE 1
OPERATING MANUAL 1
USB CABLE 1(ONLY TG-5000DL)
SOFTWARE CD 1(ONLY TG-5000DL)



OPTIONAL CONFIGURATIONS

HIGH-TEMPERATURE PROBE CAST IRON PROBE
SMALL PROBE MINI PROBE
PROBE CABLE STEPPED CALIBERATION BLOCK
RUBBER SHEATH STORAGE OPTION(ONLY TG-5000)

TG5000 Series A/B Echo-Echo Ultrasonic Thickness Gauge 0

TG5000 Series A/B Echo-Echo Ultrasonic Thickness Gauge 1
