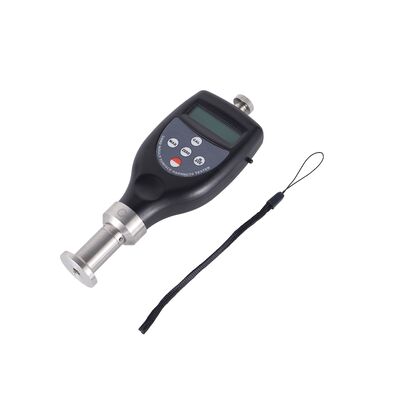

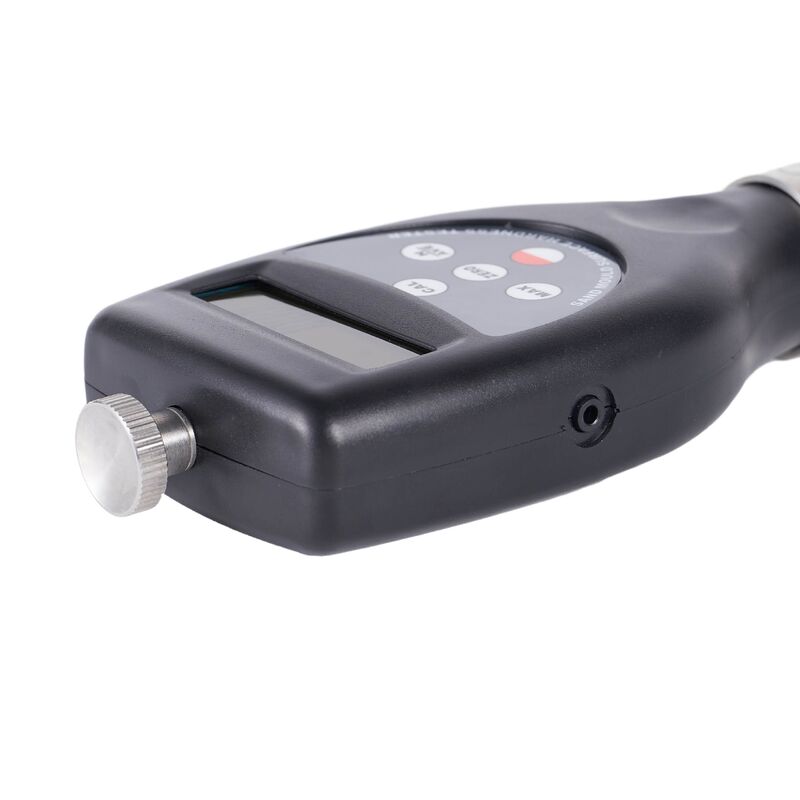

HT-6520SA Sand Mould Surface Hardness Tester

HT-6520SA Sand Mould Surface Hardness Tester
HT-6520SA Sand Mould Surface Hardness Tester HT-6520SA Sand Mould Surface Hardness Tester

Large Image :  HT-6520SA Sand Mould Surface Hardness Tester

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: CE
Model Number: HT-6520SA
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Delivery Time: 7-10 working days after receipt of your payment
Payment Terms: T/T,Paypal
Supply Ability: 10sets/Month
Contact Now

HT-6520SA Sand Mould Surface Hardness Tester

Description
Display Range: 0~100HA Measurement Range: 10~90HA
Resolution: 0.1HA PC Interface: RS232C Interface
Operating: 0~40˚C Humidity <80% Display: 4 Digits, 10 Mm LCD
Highlight:

sand mould hardness tester with warranty

,

surface hardness tester for sand moulds

,

non destructive testing equipment HT-6520SA

HT-6520SA Sand Mould Surface Hardness Tester


Application

The Sand Mould Surface Hardness Tester is used to measure the surface hardness of the sand mould/core of the wet mold and provide


SPECIFICATIONS

Display

4 digits, 10 mm LCD
Display Range 0~100 HA
Measurement Range 10~90 HA
Resolution 0.1 HA
Measurement deviation  ≤ ±1HA
PC interface RS232C interface
Power supply

2x1.5v AA (UM-3) battery
Operating condition

Temp. 0~40˚C;Humidity <80%
Size

162x65x28mm (6.4x2.6x1.1inch)
Weight

 about 170g(not including batteries)

Features

* The surface hardness of sand mold is divided into three types: A, B and C, The common model is type B, among them:

Type A: Suitable for the surface hardness test of fine sand mold/core in manual ormechanical low and medium pressure molding.

Because their values are related and consistent, the corresponding hardness value is also large when the unit value is large (g/mm2 ).

* Low voltage indicator.

* Digital display gives exact reading with no guessing or errors.

* Can communicate with PC for recording, printing and analyzing by the optional software and cable for RS232C interface.

* Automatic power off to conserve power.



HT-6520SA Sand Mould Surface Hardness Tester 0

HT-6520SA Sand Mould Surface Hardness Tester 1
