Lemo 00 - SMA Male Single Coaxial UT Cable

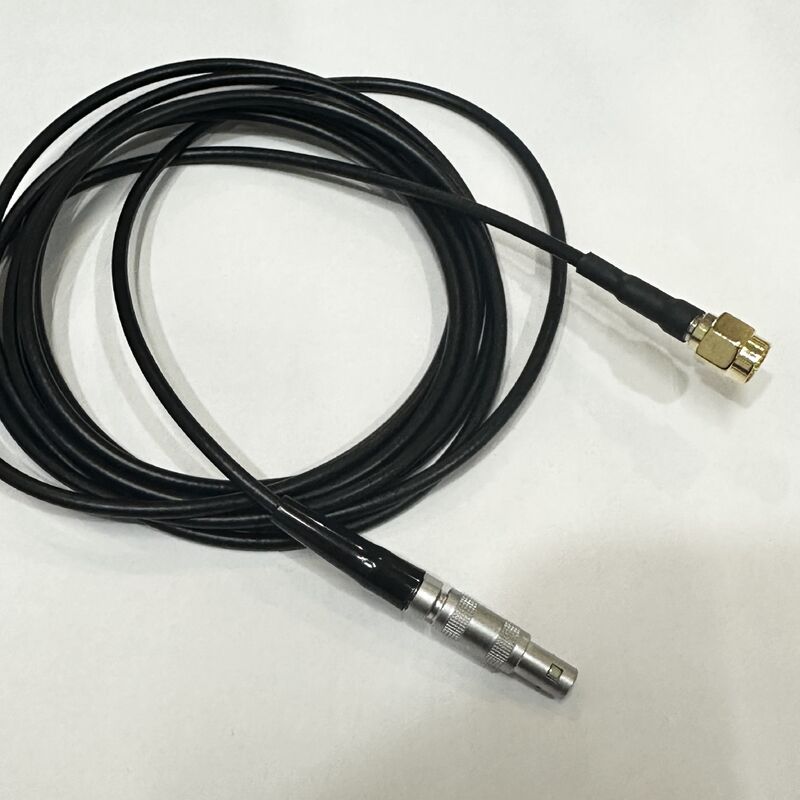

Large Image : Lemo 00 - SMA Male Single Coaxial UT Cable

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	USD60
Packaging Details:	Carton packing box
Delivery Time:	7-10 working days after receipt of your payment
Payment Terms:	T/T,Paypal
Supply Ability:	10sets/Month

Contact Now

Lemo 00 - SMA Male Single Coaxial UT Cable

Description

Interface:

Lemo 00 - SMA Male

Highlight:

SMA male coaxial cable for testing

UT single coaxial cable with SMA connector

Lemo 00 coaxial cable for NDT

Lemo 00 - SMA Male Single Coaxial UT Cable

Shell material
Lemo 00 end: Chrome-plated brass housing (SAE AMS 2460), nickel-plated brass lock sleeve; SMA end: Usually nickel-plated brass
Insulator material: Polytetrafluoroethylene (PTFE)
Connection method: Push-pull self-locking at Lemo 00 end and threaded connection at SMA end

Core basic information

Parameter	For details
Connector assembly	One end is a Lemo 00 series male connector (push-pull self-locking), and the other end is an SMA male connector (threaded connection)
Contact type	50Ω coaxial, center contact diameter 0.7mm, barrel diameter 0.6mm
Positioning key	Circular positioning
Adapt to the outer diameter of the cable	It is compatible with the common 1.8-3.6mm Lemo 00 terminal, and the SMA terminal is compatible with conventional RF cables (such as RG174, RG316, etc.)

Operating temperature: -55℃ to + 250℃
Protection grade: IP50
Salt spray resistance: > 1000 hours
Shielding effectiveness: ≥75dB at 10 MHZ and ≥40dB at 1GHz
Common cable models: low-loss coaxial cables such as RG174, RG316, Storm 421-099, etc

Lemo 00 - SMA Male Single Coaxial UT Cable 0

Lemo 00 - SMA Male Single Coaxial UT Cable 1

Lemo 00 - SMA Male Single Coaxial UT Cable 2
