DAC Ultrasonic Calibration Blocks

DAC Ultrasonic Calibration Blocks
DAC Ultrasonic Calibration Blocks DAC Ultrasonic Calibration Blocks

Large Image :  DAC Ultrasonic Calibration Blocks

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO,CE
Model Number: DAC
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: in carton
Delivery Time: 3~7 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100pcs per month
Contact Now

DAC Ultrasonic Calibration Blocks

Description
Product Name: Calibration Block Model: DAC
Material: Carbon Steel Brand: HUATEC
Highlight:

ultrasonic calibration blocks for NDT

,

DAC calibration blocks for ultrasonic testing

,

NDT equipment ultrasonic calibration blocks

DAC Ultrasonic Calibration Blocks

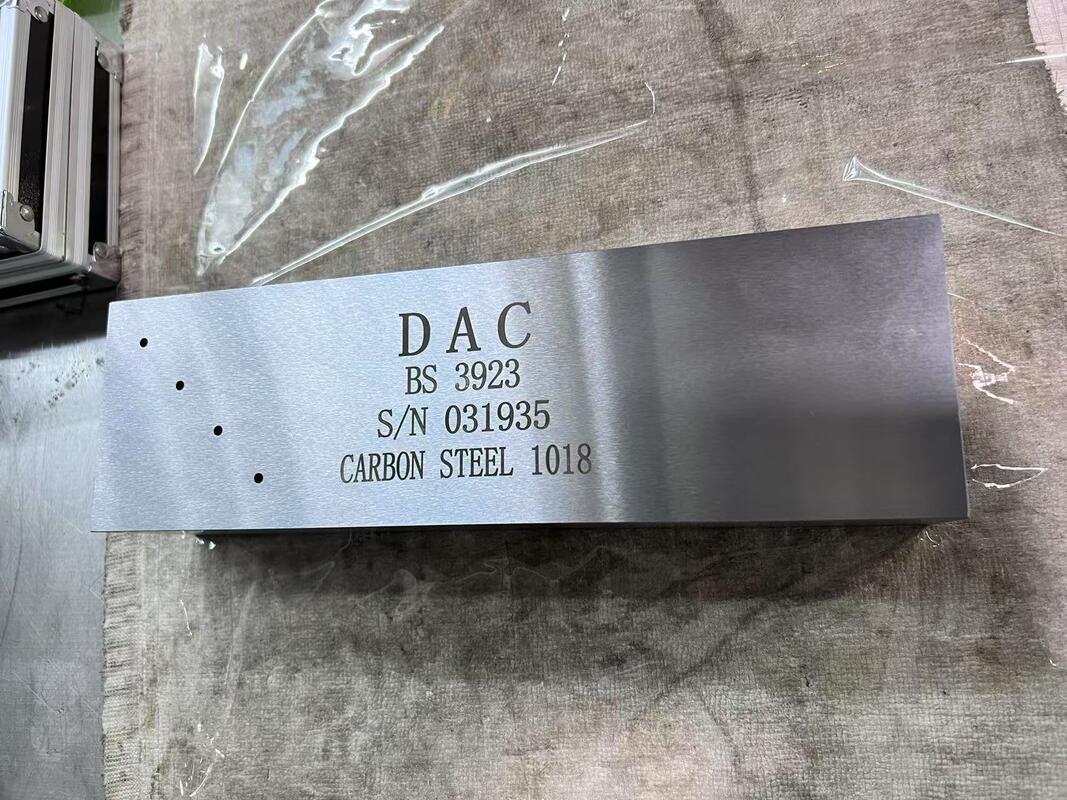

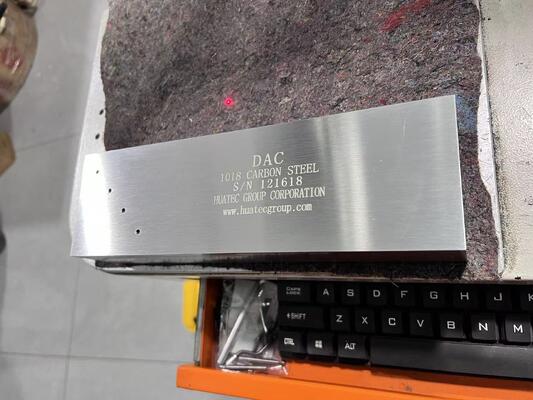

The DAC Calibration Block is for Setting DAC characteristics for shear wave and compression wave probes. All blocks come will full certification and are manufactured from Huatec.

Target Holes: 3mm at 20%, 40%, 60% and 80%.

Specification: BS EN ISO 17640:2018

Tolerances: ±0.1mm

Thickness: 50mm

Diameter: 50mm

Length: 200mm

Materials available: Carbon Steel, Stainless Steel and Aluminium (other materials can be quoted at request)

DAC Ultrasonic Calibration Blocks 0

Tag:

non destructive testing machine,

ndt testing equipment,

ndt inspection tools
