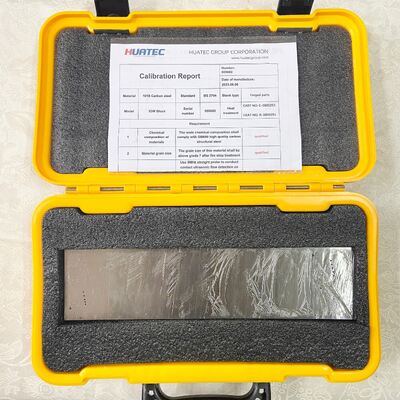

NDT Instrument IOW Calibration Block

NDT Instrument IOW Calibration Block
NDT Instrument IOW Calibration Block NDT Instrument IOW Calibration Block

Large Image :  NDT Instrument IOW Calibration Block

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO,CE
Model Number: IOW
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: in carton
Delivery Time: 3~7 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100pcs per month
Contact Now

NDT Instrument IOW Calibration Block

Description
Product Name: Calibration Block Model: IOW
Material: Carbon Steel Standard: API RP2X
Highlight:

NDT calibration block for IOW

,

IOW ultrasonic testing block

,

non-destructive testing calibration standard

NDT Instrument IOW Calibration Block

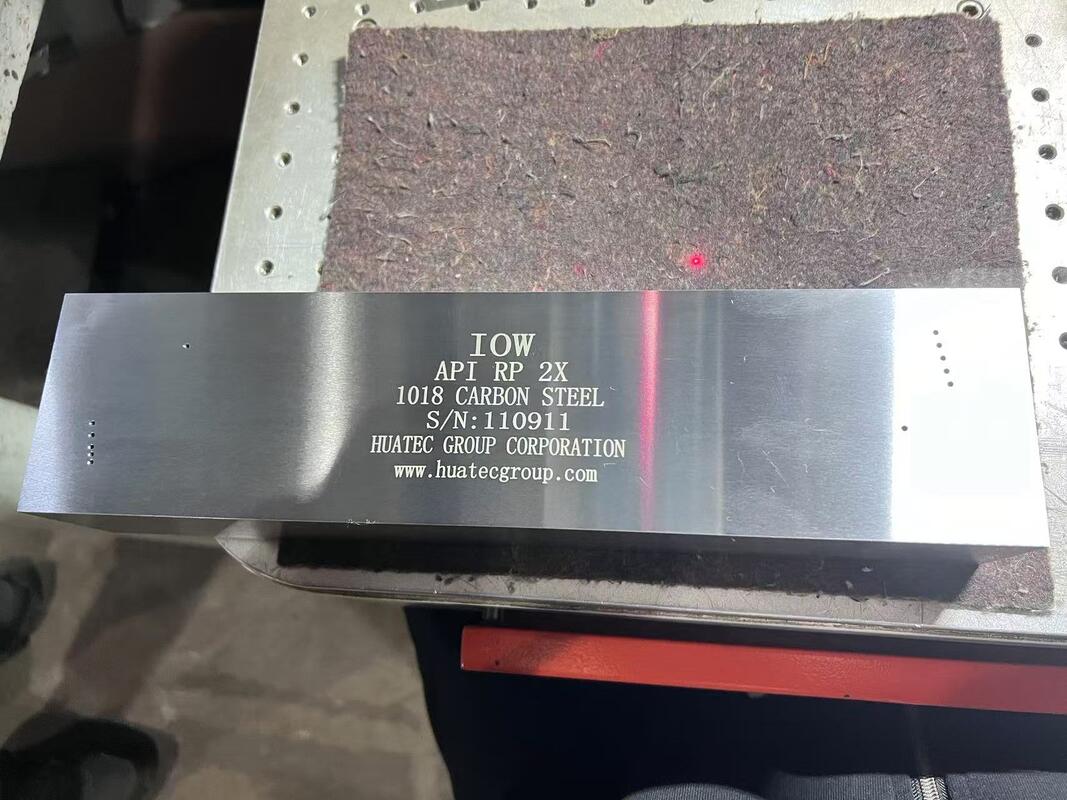

IOW Calibration Block Special Alloy Used for beam profile measurement of angle beam transducers and measurement of transducer angles. Block used for calibrates resolution check for angle beam transducer, also used for angle beam plotting, to plot beam divergence for shear wave transducer. Analysis of amplitude with respect to exit point is carried out for each angle using data points from depths corresponding to side drilled holes in an IOW block. Graphed and tabulated results are analyzed for trends. This modeling analysis is then compared to actual lab results for refracted angle determination.



Geometry: Contains nine 1.5mm diameter x 22mm deep side drilled holes.



Dimensions: 305mm (L) x 75mm(H) x 50mm (W).



Material: carbon steel

NDT Instrument IOW Calibration Block 0

NDT Instrument IOW Calibration Block 1
