Phased Array Type A Block Calibration block - NDT Service

Large Image : Phased Array Type A Block Calibration block - NDT Service

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	ISO,CE
Model Number:	PA type A

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Packaging Details:	in carton
Delivery Time:	3~7 days after payment
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100pcs per month

Contact Now

Phased Array Type A Block Calibration block - NDT Service

Description

Product Name:

Calibration Block

Model:

PA-A

Material:

Carbon Steel

Type:

Phase Arrany

Highlight:

Phased Array calibration block NDT

Type A block NDT equipment

Calibration block non-destructive testing

Phased Array Type A Block Calibration block - NDT Service

Description

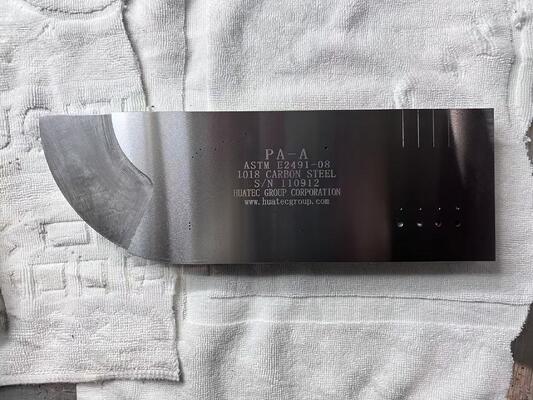

The Phased Array “Type A” Calibration Block is used during the initial setup and calibration of a phased array ultrasonic unit. This block can be used to perform tasks such as beam angle verification, calibration for wedge delay, sensitivity calibration, performing DAC/TCG, and more. This block has similar dimensions to an IIW-Type Block, but has been specially-engineered for phased array applications.

Inch

Blocks include both 4.000 and 2.000 radii, (19) through holes at 0.040 diameter, (1) through hole at 0.080 diameter, (4) FBHs at 0.080 diameter x 0.080, 0.160, 0.235, and 0.315 deep, (4) FBHs at 0.157 diameter x 0.040, 0.120, 0.200, and 0.275 deep, (3) FBHs at 0.080 diameter x 0.120 deep machined into the 2.000 radius, and (4) EDM notches at 0.004, 0.008, 0.012, and 0.016 deep x 0.020 wide x 1.00 long.

Block dimensions are 1.000 thick x 4.000 tall x 12.00 long. Inch Version in accordance with PH Tool Drawing No. 10237.

Metric

Blocks include both 100.0mm and 50.0mm radii, (19) through holes at 1.0mm diameter, (1) through hole at 2.0mm diameter, (4) FBHs at 2.0mm diameter x 2.0, 4.0, 6.0, and 8.0mm deep, (4) FBHs at 4.0mm diameter x 1.0, 3.0, 5.0, and 7.0mm deep, (3) FBHs at 2.0mm diameter x 3.0mm deep machined into the 50mm radius, and (4) EDM notches at 0.1, 0.2, 0.3, and 0.4mm deep x 0.5mm wide x 25.0mm long.

Block dimensions are 25.0mm thick x 100.0mm tall x 300.0mm long. In accordance with PH Tool Drawing No. 10217.

Phased Array Type A Block Calibration block - NDT Service 0
