ASTM E2491 Phased Array Type B Block Calibration block - NDT Service

Large Image : ASTM E2491 Phased Array Type B Block Calibration block - NDT Service

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	ISO,CE
Model Number:	PA type B

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Packaging Details:	in carton
Delivery Time:	3~7 days after payment
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100pcs per month

Contact Now

ASTM E2491 Phased Array Type B Block Calibration block - NDT Service

Description

Product Name:

Calibration Block

Material:

Carbon Steel

Model:

PA-B

Standard:

ASTE2491

Highlight:

ASTM E2491 calibration block

phased array NDT calibration block

Type B block NDT equipment

ASTM E2491 Phased Array Type B Block Calibration block - NDT Service

Description

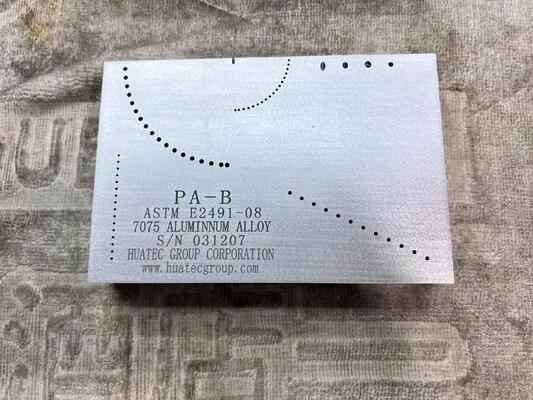

The PH Tool ASTM E2491 Phased Array Assessment Block is a general purpose Phased Array calibration block used for beam characterization and evaluation of system performance characteristics. Use it as baseline block to determine long-term instrument performance changes, generate DAC curves, and evaluate linear/angular resolution, focusing ability and beam steering capability. With a variety of targets, this small, lightweight block is also perfect for customer demonstrations of phased array ultrasonics capabilities. This block is also referred to as a “Type B” block.

Inch

Dimensions: 1 thick x 4 wide x 6 long
Nickel-plated
In accordance with ASTM E2491 and PH Tool Drawing No. 10235.

Block features:

Four (4) angled holes (30°, 45°, 60°, 75°) at 1/16 0.0625) diameter
Array of 18 holes on 1 radius at 0.040 diameter. Angular separation between holes is 5.0°, with 2.5° of separation between the last two holes in the array.
Array of 18 holes on 2 radius at 5/64 0.0781) diameter. Angular separation between holes is 5.0°, with 2.5° of separation between the last two holes in the array.
Vertical column of 16 holes at 0.040 diameter with 0.120 of separation between holes.
Angled row of 12 holes at 1/16 0.0625) diameter with 0.200 of separation between holes.
Machine-engraved tick mark at radii centerline
Machine-engraved block description, alloy, and unique serial no.

Metric

Dimensions: 150mm x 100mm x 25mm
Nickel-plated
In accordance with ASTM E2491 and PH Tool Drawing No. 10208.

Block features:

Four (4) angled holes (30°, 45°, 60°, 75°) at 1.5mm diameter
Array of 18 holes on 25mm radius at 1.0mm diameter. Angular separation between holes is 5.0°, with 2.5° of separation between the last two holes in the array.
Array of 18 holes on 50mm radius at 2.0mm diameter. Angular separation between holes is 5.0°, with 2.5° of separation between the last two holes in the array.
Vertical column of 16 holes at 1.0mm diameter with 3.0mm of separation between holes.
Angled row of 12 holes at 1.5mm diameter with 5.0mm of separation between holes.
Machine-engraved tick mark at radii centerline
Machine-engraved block description, alloy, and unique serial no.
