AWS Resolution RC Block Calibration block - NDT Service

AWS Resolution RC Block Calibration block - NDT Service
AWS Resolution RC Block Calibration block - NDT Service

Large Image :  AWS Resolution RC Block Calibration block - NDT Service

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO,CE
Model Number: RC
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: in carton
Delivery Time: 3~7 days after payment
Payment Terms: L/C, T/T, Western Union
Contact Now

AWS Resolution RC Block Calibration block - NDT Service

Description
Product Name: Calibration Block Model: RC
Material: Carbon Steel Standard: AWS
Highlight:

AWS RC block calibration standard

,

NDT calibration block with warranty

,

Non-destructive testing resolution reference block

AWS Resolution RC Block Calibration block - NDT Service



Description

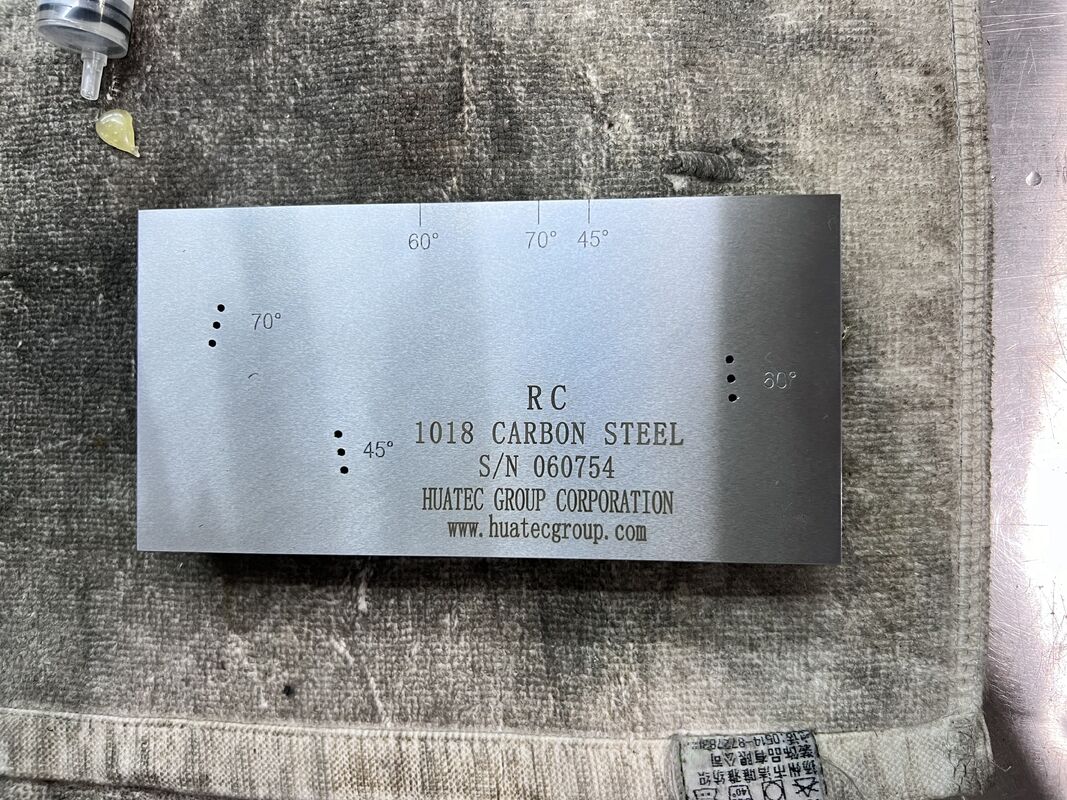

Also called an RC block, the AWS Resolution Reference Block is used for checking resolution capabilities of angle beam transducers.

Contains three sets of 0.0625 diameter through-holes for 45°, 60° and 70°. In accordance with AWS Welding Highway and Railway Bridges specification D2.0, and Structural Welding Code ANSI/AWS D1.1.

• Dimensions: 6.000 x 3.000 x 1.000 (152.4 mm x 76.2 mm x 25.4 mm)
• AWS does not specify a separate metric version of the AWS Resolution block. The metric block in AWS shows only the metric equivalents to the standard design. Therefore, this one block can be used for both inch and metric requirements.
AWS Resolution RC Block Calibration block - NDT Service 0
