Set of 19 Distance (MTD) and Signal Amplitude Flat-bottom Hole Blocks

Set of 19 Distance (MTD) and Signal Amplitude Flat-bottom Hole Blocks
Set of 19 Distance (MTD) and Signal Amplitude Flat-bottom Hole Blocks Set of 19 Distance (MTD) and Signal Amplitude Flat-bottom Hole Blocks

Large Image :  Set of 19 Distance (MTD) and Signal Amplitude Flat-bottom Hole Blocks

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: USD1495-USD1690/SET
Packaging Details: ABS box+Outer carton packaging
Delivery Time: 7-10 working days after receipt of your payment
Payment Terms: T/T,Western Union,Paypal
Supply Ability: 10 Sets/Month
Contact Now

Set of 19 Distance (MTD) and Signal Amplitude Flat-bottom Hole Blocks

Description
Material: 1018 Steel Standard: ASTM
Highlight:

MTD flat-bottom hole blocks

,

signal amplitude test blocks

,

non-destructive testing calibration blocks

Set of 19 Distance (MTD) and Signal Amplitude Flat-bottom Hole Blocks

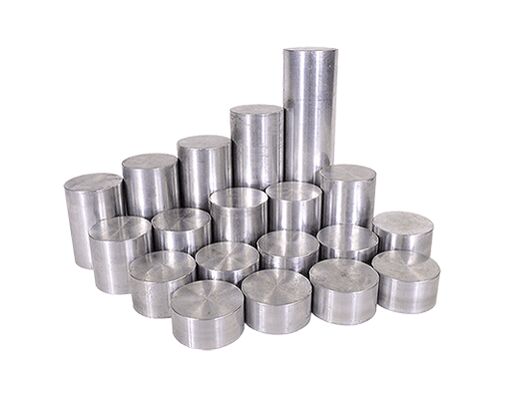

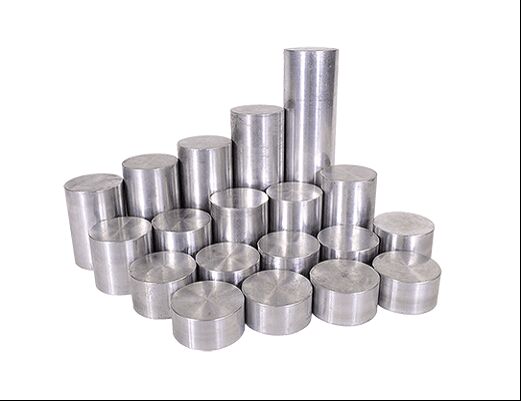

Set of 19 flat-bottom hole blocks used to determine the relationship between metal travel distance (MTD) and signal amplitude.

Geometry:

hole diameters and metal travel distances

 3/64", 5/64" or 8/64" with metal travel distances of: 0.06", 0.12",0.25",0.37",0.50", 0.62",0.75",0.87",1.0",1.25", 1.75", 2.25", 2.75", 3.25", 3.75", 4.25", 4.75", 5.25" and 5.75".

*Please specify either 3/64", 5/64" or 8/64" hole sizes for the whole set when ordering.

Set of 19 Distance (MTD) and Signal Amplitude Flat-bottom Hole Blocks 0

Set of 19 Distance (MTD) and Signal Amplitude Flat-bottom Hole Blocks 1

Set of 19 Distance (MTD) and Signal Amplitude Flat-bottom Hole Blocks 2

Set of 19 Distance (MTD) and Signal Amplitude Flat-bottom Hole Blocks 3




Tag:

non destructive testing machine,

ndt testing equipment,

ndt inspection tools
