25 Defects Magnetic Particle/DYE Penetrant Standard Testing Kit MT/PT KIT

Large Image : 25 Defects Magnetic Particle/DYE Penetrant Standard Testing Kit MT/PT KIT

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	ISO，CE
Model Number:	MT/PT KIT

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Packaging Details:	in carton
Delivery Time:	5~8 days after payment
Payment Terms:	L/C, T/T, Western Union

Contact Now

25 Defects Magnetic Particle/DYE Penetrant Standard Testing Kit MT/PT KIT

Description

Product Name:

MT/PT KIT

Material:

Carbon Steel

Kind:

25 Defects

Brand:

Huatec

Highlight:

Magnetic particle testing kit with defects

Dye penetrant testing standard kit

Non-destructive testing MT/PT kit

25 Defects Magnetic Particle/DYE Penetrant Standard Testing Kit MT/PT KIT

Flaw includes specimen (25 total FLAWS) includes;

MT/PT-01: Crater Crack, Longitudinal Crack
MT/PT-02: Toe Crack, Transverse Crack, Crater Crack
MT/PT-03: Crater Crack,Toe Crack

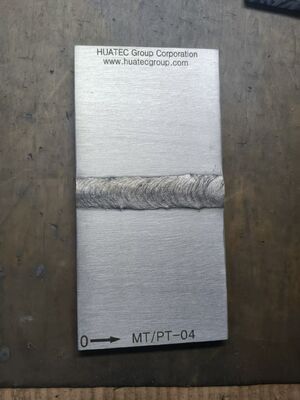

MT/PT-04: Crater Crack,Transverse Crack, Crater Crack
MT/PT-05: Crater Crack, Longitudinal Crack
MT/PT-06: Toe Crack, Crater Crack
MT/PT-07: Longitudinal Crack, Toe Crack
MT/PT-08: Transverse Crack, Longitudinal Crack, Crater Crack
MT/PT-T-01: Transverse Crack, Longitudinal Crack, Crater Crack

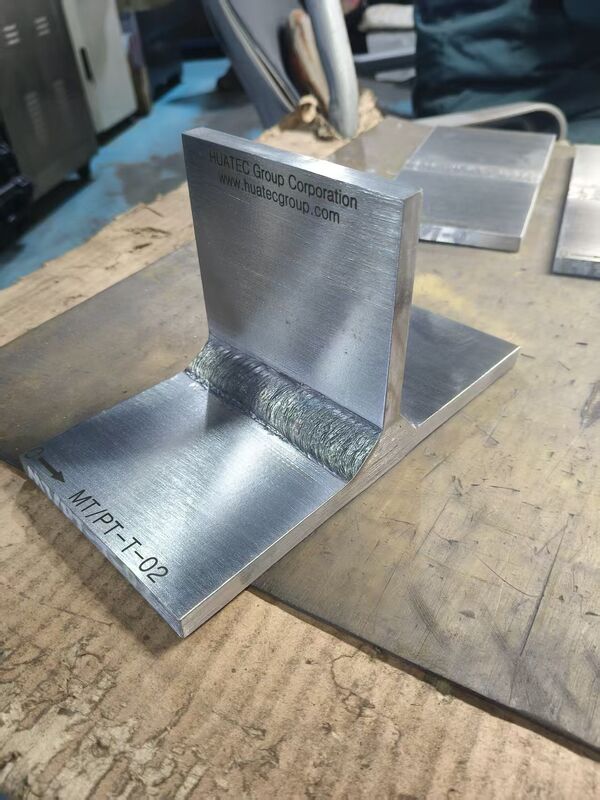

MT/PT-T-02: Crater Crack, Longitudinal Crack, Transverse Crack,

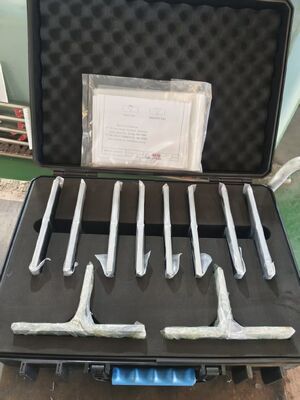

MT/PT KIT(25 defects):

Board docking: 10*100*200 X 8 pcs

Plate T type: 10*100*100*200 X 2 pcs

Material: Carbon steel

USD1100/set

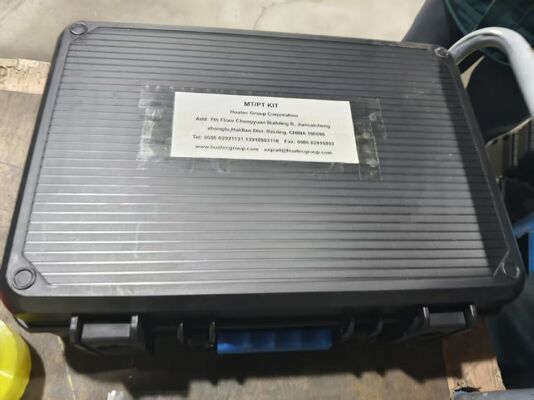

25 Defects Magnetic Particle/DYE Penetrant Standard Testing Kit MT/PT KIT 0

25 Defects Magnetic Particle/DYE Penetrant Standard Testing Kit MT/PT KIT 1

25 Defects Magnetic Particle/DYE Penetrant Standard Testing Kit MT/PT KIT 2
