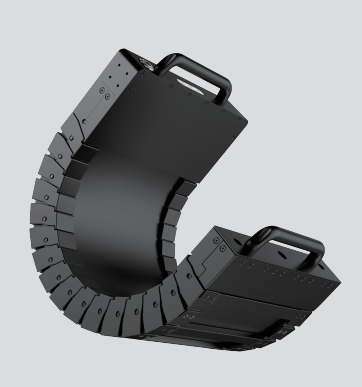

Wireless Bendable Flat Panel Detector for Industrial DR Systems

Wireless Bendable Flat Panel Detector for Industrial DR Systems
Wireless Bendable Flat Panel Detector for Industrial DR Systems

Large Image :  Wireless Bendable Flat Panel Detector for Industrial DR Systems

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO，CE
Model Number: 0410-BA
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: in carton
Delivery Time: 5~8 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 pcs per month
Contact Now

Wireless Bendable Flat Panel Detector for Industrial DR Systems

Description
Product Name: Bendable Flat Panel Detector Scintillator: GOS
Pixel Pitch (µm): 100 Effective Active Area (mm): 102.4 × 256
Highlight:

wireless bendable flat panel detector

,

industrial DR system detector

,

non-destructive testing flat panel

Wireless Bendable Flat Panel Detector for Industrial DR Systems



0410-BA is a new generation, high-performance wireless bendable flat panel detector. It features a 100μm pixel pitch with GOS, and can be bent freely to adapt to the needs of specific work environment, especially as non-destructive tests in the inspection of pipelines. It can improve the quality of image and avoid image distortion.



10 × 25 cm² bendable active area

100μm pixel pitch with 16-bit ADC for more image details

Robust wired and 5G wireless data interface

Up to 180 sec. X-ray exposure window



Technical Specifications

Sensor technology Flexible TFT / PD matrix panel
Scintillator GOS
Pixel pitch (µm) 100
Effective active area (mm) 102.4 × 256
Effective pixel matrix 1024 × 2560
Max. Window time (s) ≤180
Frame Rate (fps) 1
AD conversion (bit) 16
Trigger Mode AED / Software
Energy range (kV) 40 - 450
Water and Dust Proof IP67
Limited bending radius (mm) ≥ 80
ECU Data interface Wired: GigE
WIFI: WIFI: 802.11, 2.4G/5G
Dimensions (mm) 155× 364 × 28(FPD)
144 × 118 × 30.5(ECU)
Weight (kg) ≤2.5(Only FPD)
≤3.5(With ECU)
Operating Temperature (℃) -20 ~ 50
Storage & Transport Temperature with Package (°C) -20 ~ 60
Operating Humidity (% RH) 5 ~ 90
Storage & Transport Humidity with Package (% RH) 5 ~ 95




Dimensions

Wireless Bendable Flat Panel Detector for Industrial DR Systems 0
