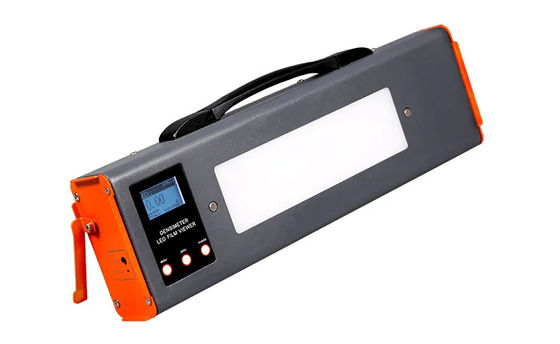

HFV-3010M 98% Full Screen Industry Radiographic LED Film Viewer With Densitometer

HFV-3010M 98% Full Screen Industry Radiographic LED Film Viewer With Densitometer
HFV-3010M 98% Full Screen Industry Radiographic LED Film Viewer With Densitometer HFV-3010M 98% Full Screen Industry Radiographic LED Film Viewer With Densitometer

Large Image :  HFV-3010M 98% Full Screen Industry Radiographic LED Film Viewer With Densitometer

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: CE
Model Number: HFV-3010M
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: USD1138-USD1287/SET
Packaging Details: Outer carton packaging
Delivery Time: 7-10 working days after receipt of your payment
Payment Terms: T/T,Western Union,Paypal
Supply Ability: 10 Sets/Month
Contact Now

HFV-3010M 98% Full Screen Industry Radiographic LED Film Viewer With Densitometer

Description
Adapter Input Voltage: 85-264VAC/47-60Hz Power: 200W Maximum Light Intensity: >100,000cd/㎡
Film Density: >4.0D According To The Inspection Report Surface Temperature: <18° Celsius (Continuance Working 24 Hours Under)
Uniform Viewing Area: 95% Full Screen Measuring Range: 0.00-5.00D
Visual Display: 4-bit LCD Control Mode: Manual + Foot-switch
Cooling Method: Forced Air Cooling
Highlight:

radiographic LED film viewer

,

full screen film viewer with densitometer

,

industrial radiographic equipment with warranty

HFV-3010M 98% Full Screen Industry Radiographic LED Film Viewer With Densitometer


Features:

Maximum Light Intensity: >100,000cd/㎡

Easily View >4. 0 Density

Pure White LED Light

50,000 Hour Lamp Life

Low Power Consumption

Fan cooling

Foot Switch

Uniform Viewing Area: 98% Full Screen

Dimmer Control: 0% to 100% continuous

Surface temperature: <18°

Built-desktop stand

Design: Modern, Stylish and Simple

Power Requirements: 85-264VAC/47-60Hz


Specifications:

MODEL:

HFV-3010M

Pecifications:



Measuring range:

0.00-5.00D;

Measurement accuracy:

±0.05D;

Calibration scope:

arbitrary value;

Visual display:

4-bit LCD;

Optical frequency sensor:

American TAOS sensor;

Probe dimension:

diameter is 3mm;

Power supply:

built-in 3200mA lithium battery;

Specifications:



Adapter Input voltage:

85-264VAC/47-60Hz

Power:

120W

Maximum Light Intensity:

＞100, 000Cd/㎡

Surface temperature:

<18° Celsius (Continuance working 24 hours under)

Uniform Viewing Area:

95% Full Screen

Dimmer Control:

0% to 100% continuous

Control mode:

Manual + Foot-switch

Cooling Method:

Forced air cooling

Dimensions:

530mm*60mm*155mm (L*W*H)

Substrate-mask window:

220mm*80mm (L*W)

Packing dimensions:

60cm*24cm*18cm

Weight:

6.5. 0KG



Package Contents:

LED viewer with densitometer HFV-3010M 1pc

Foot switch 1pc

AC power cord 1pc

Viewing mask 1pc

Magnetic film holder 2pcs

Magnetic ruler 1pc

User's manual 1pc

Calibration certificate 1pc



Trouble shooting Cause of the fault:

The power light is not on Elimination method: Check the power switch (8) to see if it is on the position of the foot switch, if is, should use in the foot switch mode. Check the lightness adjustment knob on the right-side control penal to see if it is on the minimum position, it is, should turn it to the proper lightness in the clockwise.

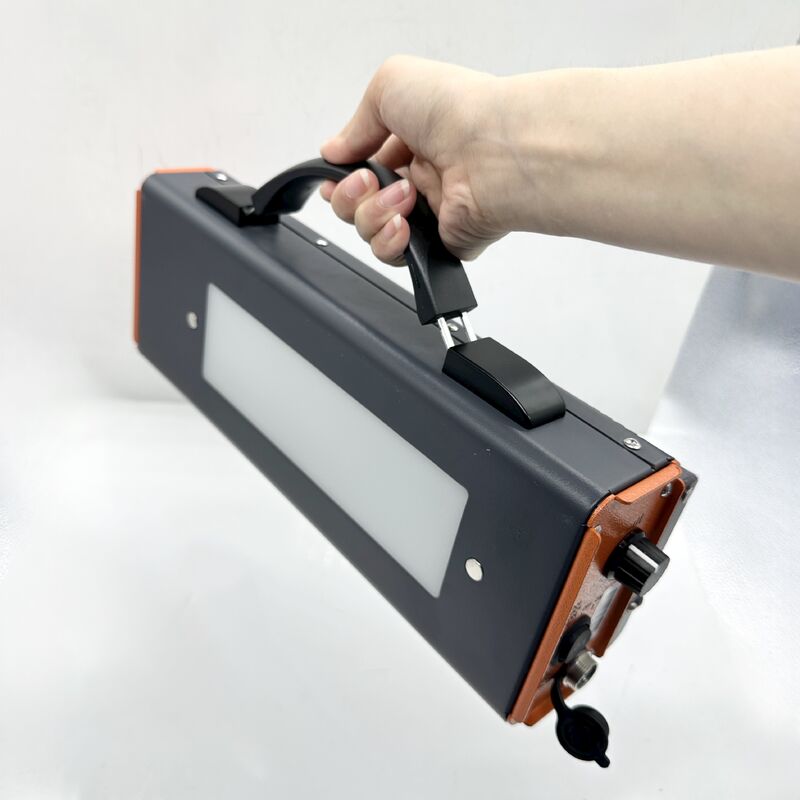

HFV-3010M 98% Full Screen Industry Radiographic LED Film Viewer With Densitometer 0

HFV-3010M 98% Full Screen Industry Radiographic LED Film Viewer With Densitometer 1

HFV-3010M 98% Full Screen Industry Radiographic LED Film Viewer With Densitometer 2
