Wireless Flat Panel DR System Flat Panel Detectors for Digital Radiography X Ray Flaw Detectors

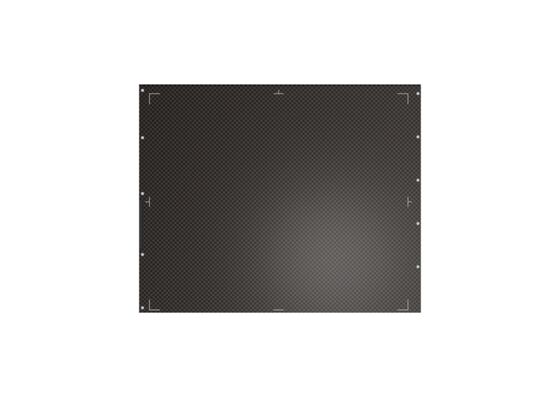

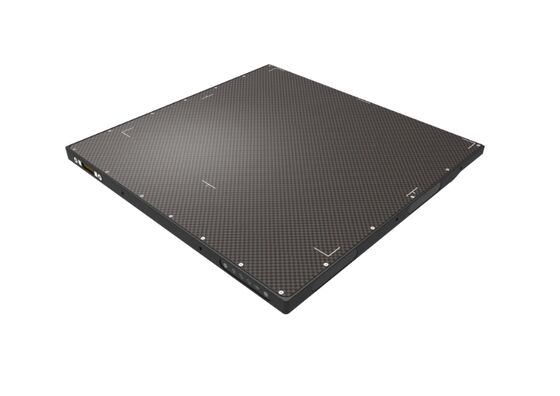

Large Image : Wireless Flat Panel DR System Flat Panel Detectors for Digital Radiography X Ray Flaw Detectors

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	ISO，CE
Model Number:	3025wn

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Packaging Details:	in carton
Delivery Time:	5~8 days after payment
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100 pcs per month

Contact Now

Wireless Flat Panel DR System Flat Panel Detectors for Digital Radiography X Ray Flaw Detectors

Description

Product Name:

Flat Panel

Effective Area:

304 X 254 Mm

Sensor + Luminescent Material:

A-Si+Gos / CsI:TI

Pixel Size:

100 μm

Highlight:

Wireless flat panel DR system

Digital radiography X-ray detectors

X-ray flaw detectors for NDT

Wireless Flat Panel DR System Flat Panel Detectors for Digital Radiography X Ray Flaw Detectors

Technical Specifications

Sensor + Luminescent material	a-Si+Gos / CsI:TI
Effective area	304 x 254 mm
Resolution	3072 x 2560
Pixel size	100 μm
Acquisition time	Wired: 1s; Wireless: 3s
Spatial resolution	5 LP/mm
Exposure Control Mode	Soft sampling
Energy range	40-370 kV
Structural dimensions	333.6×322×18.0 mm
Minimum margin	≤5mm
Weight	3.5kg
Temperature	-10-35°C (run)；-10~50°C (storage)
Waterproof and dustproof	IP54 (Upgradable IP66)
Product Application	Industrial pipeline welds, castings, pressure vessels, etc.

Dimensions
