TG-3400 Big Range 0.65～500mm Ultrasonic Thickness Gauge

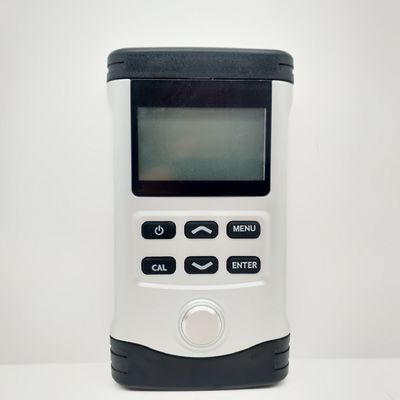

Large Image : TG-3400 Big Range 0.65～500mm Ultrasonic Thickness Gauge

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	TG-3400

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Packaging Details:	Carton packing box
Delivery Time:	5-7 working days after receipt of your payment
Payment Terms:	T/T,Paypal
Supply Ability:	5sets/Month

Contact Now

TG-3400 Big Range 0.65～500mm Ultrasonic Thickness Gauge

Description

Measuring Range:	0.65～500mm (45＃Steel)	Sound Velocity Range:	1000～9990m/s
Precision:	0.01mm	Error:	1％ * Thickness Value±0.05mm
Probe Frequency:	2MHz-10MHz	Operating Environment:	Temperature Between -10℃～60℃Relative Humidity < 90％
Highlight:	ultrasonic thickness gauge 0.65-500mm range , non-destructive testing thickness gauge , TG-3400 ultrasonic thickness meter

TG-3400 Big Range 0.65～500mm Ultrasonic Thickness Gauge

Application: used for measuring the thickness of hard materials, such as: steel, stainless steel,aluminum, copper, chrome and other metal materials, as well as plastics, rubber, ceramics, glass and other nonmetals. The gauges are widely used in petroleum, chemical industry, electric power, boiler,metallurgy, shipbuilding, aviation, aerospace and other fields.

Specifications

Measuring Range	0.65～500mm (45＃Steel)
Sound Velocity Range	1000～9990m/s
Precision	0.01mm
Error	1％ * Thickness Value±0.05mm
Operating Environment	Temperature Between -10℃～60℃Relative Humidity < 90％
Dimension	1757025mm
Probe Frequency	2MHz-10MHz
Display	Auto Backlight

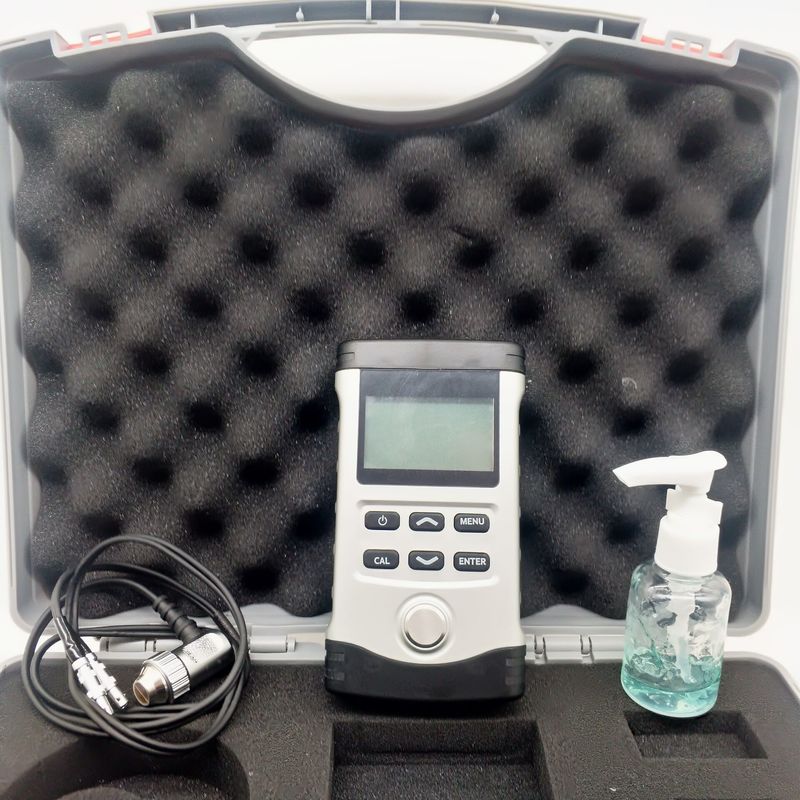

Standard accessories

1,TG-3400 Unit 1 Set

2,Probe (one forφ6 and one forφ10) 2

3,Couplant 1 Bottle

4,Steel File 1

5,Step Block 1

6,1.5V Battery 2

7,Instruction Manual 1

8,Guarantee Card and Certificate of Conformity 1

9,Carrying Case 1

Optional accessories:

1,Print and Connections for Communication and Printing 1

2,Microcomputer Communication Software 1

3,Tool Kit for Measurement 1

Reference Sound Velocity of Common Materials:

Material	Sound Velocity(M/S)	Material	Sound Velocity(M/S)
Aluminium	6400	Copper	4700
Zinc	4170	Stainless Steel	5790
Silver	3600	Brass	4640
Gold	3240	Tin	3230
Steel & Iron	5900	Organic Glass	2730

Note: The thickness of many other materials can also be measured.

TG-3400 Big Range 0.65～500mm Ultrasonic Thickness Gauge 0

TG-3400 Big Range 0.65～500mm Ultrasonic Thickness Gauge 1

TG-3400 Big Range 0.65～500mm Ultrasonic Thickness Gauge 2

TG-3400 Big Range 0.65～500mm Ultrasonic Thickness Gauge 3

TG-3400 Big Range 0.65～500mm Ultrasonic Thickness Gauge 4
