MT Inspection Magnetic Yoke Weight Lift Test Bar

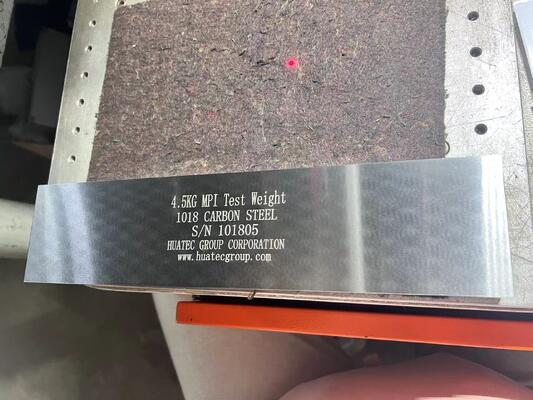

Large Image : MT Inspection Magnetic Yoke Weight Lift Test Bar

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	ISO，CE
Model Number:	dead weight test block N1

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	in carton
Delivery Time:	5-8 days after payment
Payment Terms:	T/T,Western Union
Supply Ability:	100 pcs per month

Contact Now

MT Inspection Magnetic Yoke Weight Lift Test Bar

Description

Standard:

ASME

Use:

Magnetic Particle Testing For Electromagnetic Calibration

Industry:

NDT Magnetic Particle Testing

Weight:

45N Lifting Force Test Block, 5kg

Highlight:

magnetic yoke inspection bar

weight lift test yoke

non-destructive testing magnetic yoke

MT Inspection Magnetic Yoke Weight Lift Test Bar

The Yoke Test Weight is a certified 10 lb / 4.5 kg weight designed specifically for AC magnetic yokes to confirm the yoke has sufficient strength to perform magnetic particle inspections. Each Yoke Test Weight has a built-in leg positioning guide to assure balanced distribution and accurate test results.

Use the Yoke Light and Yoke Test Weight to improve your mag particle inspections with Magnaflux HCDX-Y2 and HCDX-Y9 electromagnetic yokes.

Standard	ASME JB/T6066-2005
Material	No. 45 steel
Type of blank	forging
Heat treatment state	normalizing treatment

N1 type	45N lifting force test block	5KG
N2 type	118N lifting force test block	12KG
N3 type	177N lifting force test block	18KG
