Shim Miniature QQI Standard Flaw Shims for Magnetic Particle Inspection

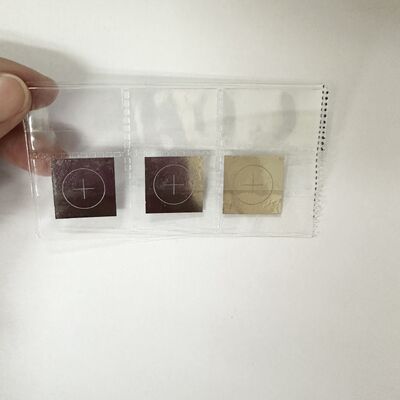

Large Image : Shim Miniature QQI Standard Flaw Shims for Magnetic Particle Inspection

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	ISO，CE
Model Number:	QQI CX230

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Packaging Details:	in carton
Delivery Time:	3~7 days after payment
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000 pieces per month

Contact Now

Shim Miniature QQI Standard Flaw Shims for Magnetic Particle Inspection

Description

Product Name:

Test Specimen (QQI)

Tyepe:

CX230

Standard:

ASME-2007 PAGE Number V

Weight:

0.1kg

Highlight:

Shim QQI flaw shims for NDT

Miniature flaw shims magnetic inspection

Standard shims for particle inspection

Shim Miniature QQI Standard Flaw Shims for Magnetic Particle Inspection

Magnetic QQI Specimens (Quantitative Quality Indicators) are magnetic particle test pieces with artificial defects used to demonstrate field direction and field strength within a part for magnetic particle inspection (MPI) applications. Magnetic QQI's are useful for setting up the magnetization parameters for part-specific MPI techniques. QQI's can be used to create an example part for daily system performance checks of magnetizing equipment. Magnetic QQI's are thin and flexible, so they can be easily applied to the test piece and are either taped or glued in place.

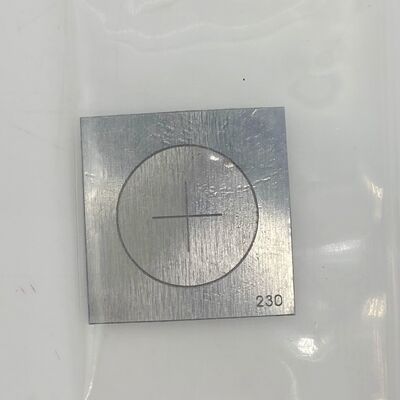

test specimen (QQI)	CX230 0.002inch thickness, ASTM E1444/E1444M-11
	CX430 0.004inch thickness, ASTM E1444/E1444M-11
	CX4-230 0.004inch thickness, ASTM E1444/E1444M-11
	CX4-430 0.004inch thickness, ASTM E1444/E1444M-11

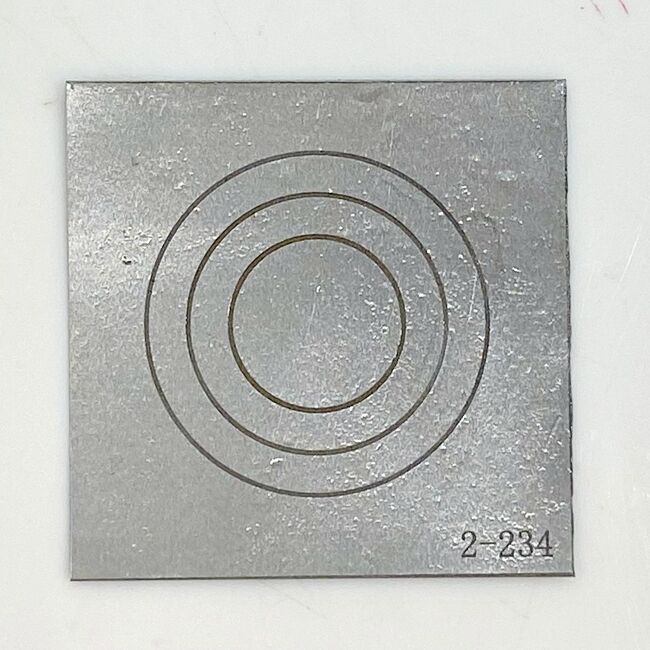

	3C2-234 0.002inch thickness, 0.002inch thickness, ASTM E1444/E1444M-11
	3C4-234 0.004inch thickness, ASTM E1444/E1444M-11
test specimen (QQI)	type A/C/D/M1,1# 15/100μ 2# 30/100μ 3# 60/100μ 4# 7/50μ 5# 15/50μ 6# 30/50μ, 6pcs per set

Shim Miniature QQI Standard Flaw Shims for Magnetic Particle Inspection 0
