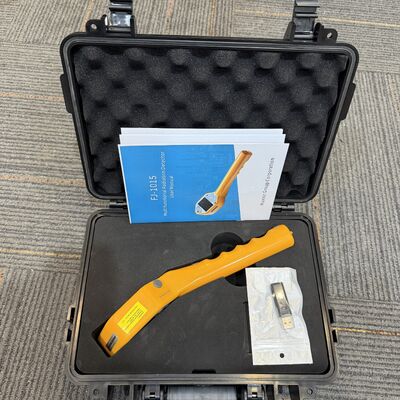

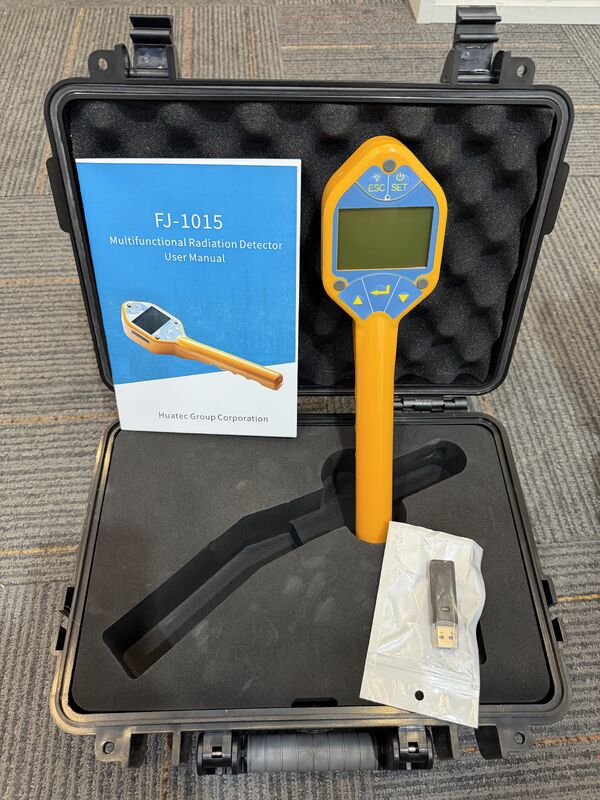

Detect Five Kinds of Radiation Multi Purpose Radioactive Survey Meter

Detect Five Kinds of Radiation Multi Purpose Radioactive Survey Meter

FJ-1015 multi-function radiation patrol instrument can detect five kinds of radiation, such as alpha, beta, X, gamma and neutron. It can measure environmental radiation level and surface contamination. It can also select carbon fiber extension rod and ultra-large dose radiation probe. It is the best choice for rapid response and nuclear emergency.

Hardware configuration

1.Imported Saint-Gobain Cake Detector

2.High Strength ABS Shell

3.Large-screen LCD

4.4G Large Capacity SD Card (Storing 100,000 Groups of Data)

5.Patented High Voltage Circuit Module

6.Patented Energy-saving Circuit Module

7.485 Fast Interpolation Interface

8.Connect Spring Data Line with Expanded Probe

9.USB interface

10.On-line USB Data Line with PC

11.Data Analysis CD-ROM for PC

12.5# Battery 2 Section

Typical configuration technical parameters:

Cumulative dose range: 0-999999mSv

Sensitivity: 3500 CPM/mR/h (for Cs-137)

Alpha-ray energy range: 2.6 MeV and above

Beta-ray energy range: 100 keV and above

X and gamma energy ranges: 10 keV~3 MeV

Data storage space: 4G

Shell Material: Yellow ABS

Power-on working hours: > 72 hours

Relative basic error: +10%

Display units: mu Sv/h, mSv/h, mR/h, mu Gy/h, mGy/h, cps, cpm, mSv

Threshold Setting: Regular 3-fold Continuous Adjustment from Background

Alarm items: over-threshold alarm, detector fault alarm, low-power alarm, over-range alarm

Alarm mode: Acousto-optic alarm and vibration alarm can be combined arbitrarily

Self-protection: Over-threshold Self-protection

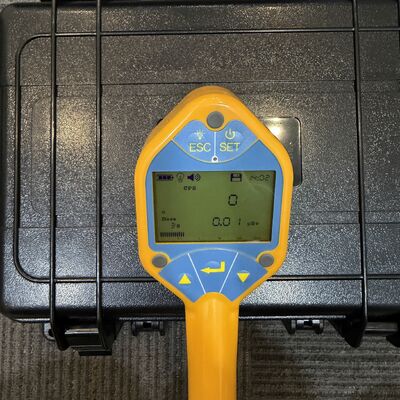

Display: color display screen, all data display on the same screen, with backlight function

Expansibility: With external fast plug, the probe can be expanded quickly.

Emergency: Start up for 1 second without preheating; alarm within 5 seconds of exceeding threshold

Packaging Protection Level: IP65

Temperature range: - 20 ~60 ~

Humidity range: <98% (40 C)

Weight: about 340g
