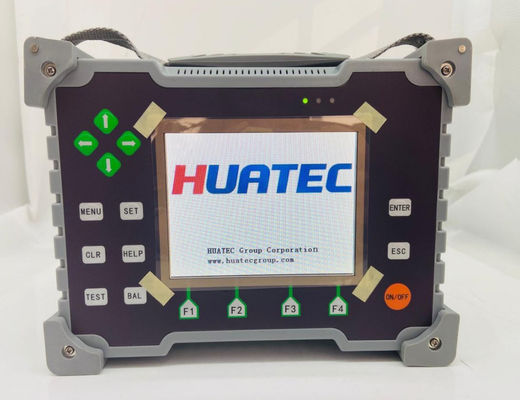

HEF-2D Multi-Function Digital Eddy Current Tester with DSP & FPGA Technology

Large Image : HEF-2D Multi-Function Digital Eddy Current Tester with DSP & FPGA Technology

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	HEF-2D

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	USD7176/set - USD8112/set
Packaging Details:	Carton packing box
Delivery Time:	7-10 working days after receipt of your payment
Payment Terms:	T/T,Paypal
Supply Ability:	10sets/Month

Contact Now

HEF-2D Multi-Function Digital Eddy Current Tester with DSP & FPGA Technology

Description

Independent Detection Frequency:	2 In Total	Frequency Range:	10 Hz To 10 MHz, Excellent Frequency Regulation Performance
Gain:	0 DB ~ 99 DB, Wide Gain Adjustment	Phase:	0～359°,Step 1 Deg , Flexible Phase Rotation
Lift-off Height:	1--3mm, No Need To Hide The Surface Layer Processing	Digital Filtering:	HPF(0Hz～2000Hz),LPF(0Hz～2000Hz)
Operating System:	Linux 2.6 Operation Language:English/Chinese
Highlight:	Digital eddy current tester with DSP , Multi-function eddy current tester , Non-destructive testing equipment with FPGA

HEF-2D Multi-Function Digital Eddy Current Tester with DSP & FPGA Technology

Product description

◆ HEF-2D is HUATEC electromagnetic product family adds a "forcing", using the world's most advanced DSP and FPGA integration technology greatly improve the signal processing speed, detection accuracy rate is 10 times that of similar products.

◆ Suitable for almost all eddy current testing applications, but also effectively suppress interference signals, which not only has a conventional digital "dual" eddy current testing, also has a "magnetic memory, conductivity, thickness measurement" measurement functions, products widely used in military vulnerability assessment ( surface inspection blades, wheels, landing gear and other aircraft components); aircraft rivet holes or bolt holes in the surface crack detection hole without dismantling or removing fasteners state, the multilayer structure of the aircraft, and aluminum skin detection wing fuselage joints, the stress of the metal structure has a strong focus on early diagnosis function.

◆ HEF-2D Fool-style operation available., Without long time special training, we will be able to work posts.

◆ Special Note :Two functions required to configure different sensors support.

Applications:

For aerospace, aviation, special, college education, metal parts, pipe, structure, weld, metal parts testing.

Technical Parameters

Eddy current testing technical indicators:
◆	Large screen, high brightness 5.7-inch color TFT-LCD, to solve the shortcomings of traditional screen
◆	Independent Detection Frequency:2 in total
◆	Frequency range:10 Hz to 10 MHz, excellent frequency regulation performance
◆	Gain: 0 dB ~ 99 dB, wide gain adjustment
◆	Phase:0～359°,Step 1 Deg , flexible phase rotation
◆	Intelligent Mixing Unit:1 in total
◆	Lift-off height: 1--3mm, no need to hide the surface layer processing
◆	Automatic Balance:Digital Electronic Balance
◆	Phase / non-amplitude, box and fan boxes, alarm mode to meet your testing needs
◆	Probe Driver:Vpp=1～8V,meet different probe structures, multi-function
◆	Independent X and Y gain adjustment
◆	Digital Filtering:HPF(0Hz～2000Hz),LPF(0Hz～2000Hz)
◆	Capacity USB 2.0 (Host) output connection
◆	Eddy current detection signal playback, analysis, save, print function
◆	Center coordinates: X Y adjustable
◆	Operating System:Linux 2.6 Operation Language:English/Chinese
◆	Display Mode:Impedance, time base, rectangular coordinates, polar coordinates
◆	Power Supply : 110V～220V, built-in rechargeable lithium battery 8000MAH
◆	Online hotkey graphics, text help
◆	Operating Temperature: -20° ～ 60°Ｃ
◆	Standard system: Cartesian coordinates, polar coordinates
◆	Instrument dimensions:250 MM x 200 MM x 85 MM,Weight:2.0KG
◆	Display: waveform, value, so you at a glance；
◆	Using DSP digital filtering: high-pass, low-pass frequency(0Hz～2000Hz)
◆	Fast digital electronic balance
◆	Automatically clear the "magnetic field" effect
◆	Alarm setting: each channel independent non-equal size settings
◆	Alarm sound: On / Off
◆	100 sets of detection process parameter storage
◆	10000 graphics storage, graphics can be saved as a U disk

Coating thickness measurement technical data:
◆	Testing method: eddy current method
◆	Matrix: iron, non-ferrous
◆	Conductivity test range:0—1500μm (0—59.04mil)
◆	Display units:um & mil convertible
◆	Resolution:1um
◆	Accuracy: ±1um
◆	Data memory: the measurement data can be stored for more than 1000
◆	Language: Chinese, English
◆		Using DSP digital filtering: high-pass, low-pass frequency(0Hz～2000Hz)
◆		Fast digital electronic balance
◆		Automatically clear the "magnetic field" effect
◆		Alarm setting: each channel independent non-equal size settings
◆		Alarm sound: On / Off
◆		100 sets of detection process parameter storage
◆		10000 graphics storage, graphics can be saved as a U disk

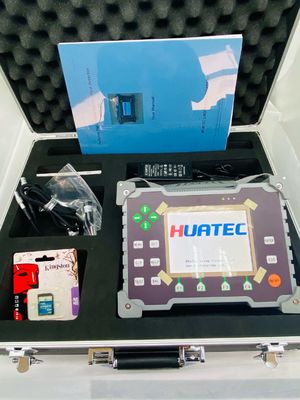

Standard configuration
Host HEF-2D:One set
Probe:Plane probe, through type probe, thickness probe
Probe cable: ONE
Charger: ONE
Battery: ONE
Test block: Optional
Instructions :ONE
Warranty Card : ONE
Product List : ONE
