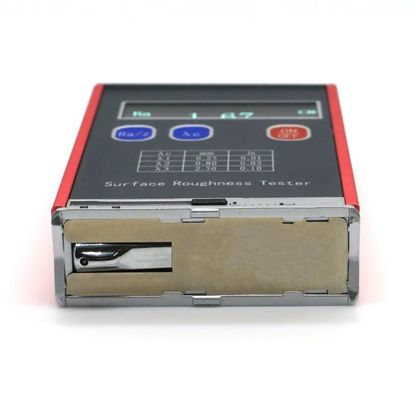

SRT-5000 Surface Roughness Tester Multi-Parameter Portable Surface Profilometer Ra Rz Rq Rt

SRT-5000 Surface Roughness Tester Multi-Parameter Portable Surface Profilometer Ra Rz Rq Rt
SRT-5000 Surface Roughness Tester Multi-Parameter Portable Surface Profilometer Ra Rz Rq Rt SRT-5000 Surface Roughness Tester Multi-Parameter Portable Surface Profilometer Ra Rz Rq Rt

Large Image :  SRT-5000 Surface Roughness Tester Multi-Parameter Portable Surface Profilometer Ra Rz Rq Rt

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: CE
Model Number: SRT-5000
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: US$575.00 - 650.00/set
Packaging Details: Outer carton packaging
Delivery Time: 3-5 working days after receipt of your payment
Payment Terms: T/T,Western Union,Paypal
Supply Ability: 10 Sets/Month
Contact Now

SRT-5000 Surface Roughness Tester Multi-Parameter Portable Surface Profilometer Ra Rz Rq Rt

Description
Measurement Parameters(µm): Ra Rz Rq Rt Stroke Length（mm）: 6
Sampling Length（mm）: 0.25 ，0.80 ，2.50 Measurement Range（µm ）: Ra：0.05 ~ 10.0 ;Rz：0.1 ~ 50
Error Of Indication: ±15% Varation Of Indication: ＜12%
Sensor Guide Head Pressure: ≤ 0.5N
Highlight:

portable surface roughness tester

,

multi-parameter surface profilometer

,

Ra Rz Rq Rt tester

SRT-5000 Surface Roughness Tester Multi-Parameter Portable Surface Profilometer Ra Rz Rq Rt


Features:

Appearance using pull aluminum mould design, durable, anti-electromagnetism interference ability significant, accord with current design new trend.
By using high-speed DSP processors for the data processing and calculation, measuring and calculation speed is greatly improved.
Liquid crystal adopts popular OLED display, high brightness, no perspective, wide temperature.It is suitable for various applications.
Using lithium ion rechargeable batteries, it can work long hours with no memory effect.It also can work with charging .Charging time is short, while the battery life is long.
Use the common USB interface to charge and communication .Use special charger or the computer USB port of chargeIt’s convenient and quick.
Dot matrix LCD display, interface message is rich.
Real-time monitoring of lithium battery power and display, electric charge and timely remind users.
Automatic shutdown function, low power consumption and hardware design make instrument working hours exceeds. It is suitable for all kinds of field use.
The sensors head has the protect door, which protect the head of the sensors effectively. Guarantee the accuracy of measurement.


SPECIFICATIONS:

Measurement Parameters(µm) Ra Rz Rq Rt
Stroke Length(mm) 6
Sampling Length(mm) 0.25 , 0.80 , 2.50
Evaluation Length(mm) 1.25 , 4.0 ,
Measurement Range(µm ) Ra: 0.05 ~ 10.0
Rz: 0.1 ~ 50
Error of Indication ±15%
Varation of Indication ＜12%
Tip arc radius 10 µm±1 µm
Angle:90
Touch needle static force measurement ≤ 0.016N

Force measurement rate

 ≤ 800N/m
Sensor guide head pressure ≤ 0.5N
Battery 3.7V Lithium Ion battery
Contour Dimension 106 mm×70 mm×24 mm
Weight 200g

Temperature

 -20℃～40℃
Relative Humidity < 90%
Surrounding no vibration and no corrosive medium.

Standard Accessories:
Main unit…………… . ..1pc.
Carrying case………… 1 pc.
Operation manual…….1 pc.
Standard sample plate…1 pc
Product certificate ….  1 pc

SRT-5000 Surface Roughness Tester Multi-Parameter Portable Surface Profilometer Ra Rz Rq Rt 0SRT-5000 Surface Roughness Tester Multi-Parameter Portable Surface Profilometer Ra Rz Rq Rt 1SRT-5000 Surface Roughness Tester Multi-Parameter Portable Surface Profilometer Ra Rz Rq Rt 2
