Angle/ Straight Beam Transducer Ultrasonic Flaw Detector Probe

Large Image : Angle/ Straight Beam Transducer Ultrasonic Flaw Detector Probe

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	ISO，CE
Model Number:	probe

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Packaging Details:	in carton
Delivery Time:	3~7 days after payment
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000 pcs per month

Contact Now

Angle/ Straight Beam Transducer Ultrasonic Flaw Detector Probe

Description

Product Name:

Ultrasonic Transducer

Size:

8*9

Frequency:

2Mhz, 4Mhz

Angle:

45°

Highlight:

angle beam ultrasonic flaw detector

straight beam transducer probe

ultrasonic NDT testing equipment

Angle/ Straight Beam Transducer Ultrasonic Flaw Detector Probe

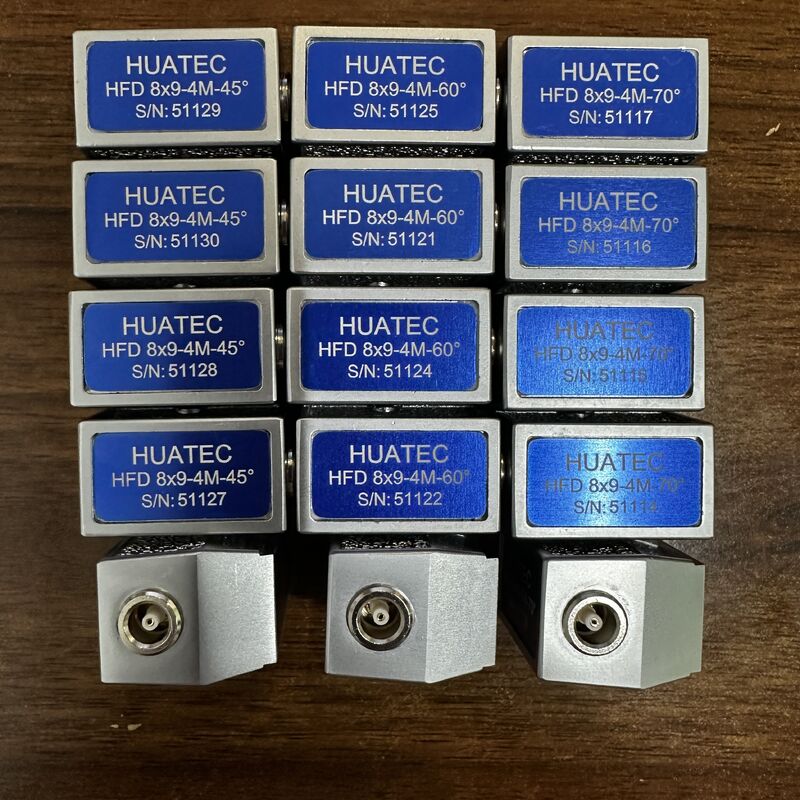

Angle beam transducers
Designation	Transducer Element Size(mm)	Frequency (MHz)	Angle	EXW. Price
HFD8X9-2M-45	8 X 9mm	2 MHz	45º	USD55
HFD8X9-2M-60	8 X 9mm	2 MHz	60º	USD55
HFD8X9-2M-70	8 X 9mm	2 MHz	70º	USD55
HFD8X9-2M-80	8 X 9mm	2 MHz	80º	USD55
HFD8X9-5M-45	8 X 9mm	5 MHz	45º	USD55
HFD8X9-5M-60	8 X 9mm	5 MHz	60º	USD55
HFD8X9-5M-70	8 X 9mm	5 MHz	70º	USD55
HFD8X9-5M-80	8 X 9mm	5 MHz	80º	USD55

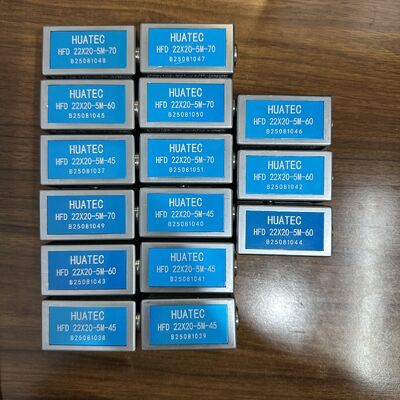

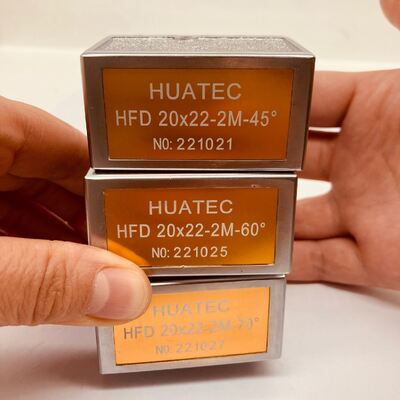

HFD22X20-2M-45	22 X 20mm	2 MHz	45º	USD60
HFD22X20-2M-60	22 X 20mm	2 MHz	60º	USD60
HFD22X20-2M-70	22 X 20mm	2 MHz	70º	USD60
HFD22X20-2M-80	22 X 20mm	2 MHz	80º	USD60
HFD22X20-5M-45	22 X 20mm	5 MHz	45º	USD60
HFD22X20-5M-60	22 X 20mm	5 MHz	60º	USD60
HFD22X20-5M-70	22 X 20mm	5 MHz	70º	USD60
HFD22X20-5M-80	22 X 20mm	5 MHz	80º	USD60
Dual Angle Transducers
HFD13X8-2M-60	13 X 8mm	2 MHz	60º	USD80
HFD13X8-2M-70	13 X 8mm	2 MHz	70º	USD80
HFD20X10-2M-60	20 X 10mm	2 MHz	60º	USD90
HFD20X10-2M-70	20 X 10mm	2 MHz	70º	USD90
HFD13X8-5M-60	13 X 8mm	5 MHz	60º	USD80
HFD13X8-5M-70	13 X 8mm	5 MHz	70º	USD80
HFD20X10-5M-60	20 X 10mm	5 MHz	60º	USD90
HFD20X10-5M-70	20 X 10mm	5 MHz	70º	USD90

High temp Transducers
HFD12-1/2/3/4/5M	12mm	1/2/3/4/5M	500degrees	USD379
HFD14-1/2/3/4/5M	14mm	1/2/3/4/5M	500degrees	USD399
Optional wedge				USD189

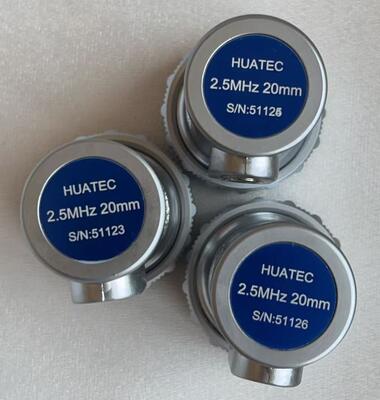

Straight Beam Transducers
Designation	Transducer Element Size(mm)	Frequency (MHz)		EXW. Price
HFD10-2M	10mm	2 MHz		USD55
HFD10-4M	10mm	4 MHz		USD55
HFD10-5M	10mm	5 MHz		USD55
HFD20-2M	20mm	2 MHz		USD60
HFD20-4M	20mm	4 MHz		USD60
HFD20-5M	20mm	5 MHz		USD60

Angle/ Straight Beam Transducer Ultrasonic Flaw Detector Probe 0
