PT test panel ISO 3452-3

Large Image : PT test panel ISO 3452-3

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	Standard
Model Number:	PT test panel ISO 3452-3

Contact Now

PT test panel ISO 3452-3

Description

Name:

PT Test Panel ISO 3452-3

Use:

Type II Penetration Testing For Non-destructive Testing (NDT)

Application:

Penetrant Testing Daily Check Panel

Main Word:

PT Test Panel ISO 3452-3

Highlight:

PT test panel ISO 3452-3 standard

non-destructive testing equipment panel

ISO 3452-3 PT inspection panel

PT test panel ISO 3452-3

ISO 3452-3 Type 2 reference blocks are essential quality control tools in the field of penetrant testing (PT), with their core uses being:
1. Daily monitoring of system performance: used for routine evaluation of the performance of fluorescence and dye penetrant detection systems to ensure stable and reliable detection results.
2. Process stability verification: Check whether the performance of the penetrant has decreased due to repeated use, exposure to ultraviolet light, temperature changes, contamination, or evaporation.
3. Operational standardization inspection: Verify whether the entire testing process, including cleaning, emulsification, and imaging, meets the standard requirements.

Industry and Applications
Typical industries: aerospace, automotive manufacturing, pressure vessels, special equipment, mechanical processing, and power energy.
Specific scenarios: daily operation inspection of penetration testing lines, performance comparison of different batches or brands of penetration agents, practical training for new testing personnel, and troubleshooting of process failures.

The 'Type II Penetrant block' typically refers to a Type II penetration reference block used for non-destructive testing (NDT). It mainly follows the international standard ISO 3452-3:2013.

HUATEC ISO 3452-3 PT Panel Includes:

1	ISO Panel with transparent storage box
2	Calibration Certificate with measurements and 5 single star photos
3	Foil print, glued on the storage box, with measurements and 5 single star photos

PT test panel ISO 3452-3 Standard system relationship
ISO 3452-3 does not exist in isolation, it is part of the penetrant testing series of standards. The main associated criteria include:
·ISO 3452-1: General principles. Specific usage methods for Type 2 test blocks have been specified
·ISO 3452-2: Testing of penetrant materials.
·ISO 3452-4: Related testing equipment.
·ISO 3452-5/6: Testing at special temperatures (high/low temperature).

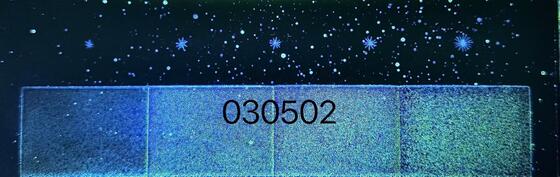

PT test panel ISO 3452-3 0

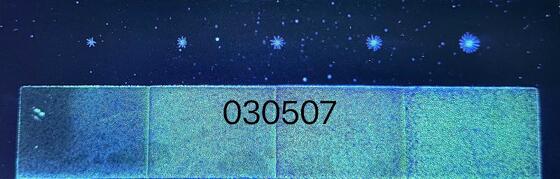

PT test panel ISO 3452-3 1

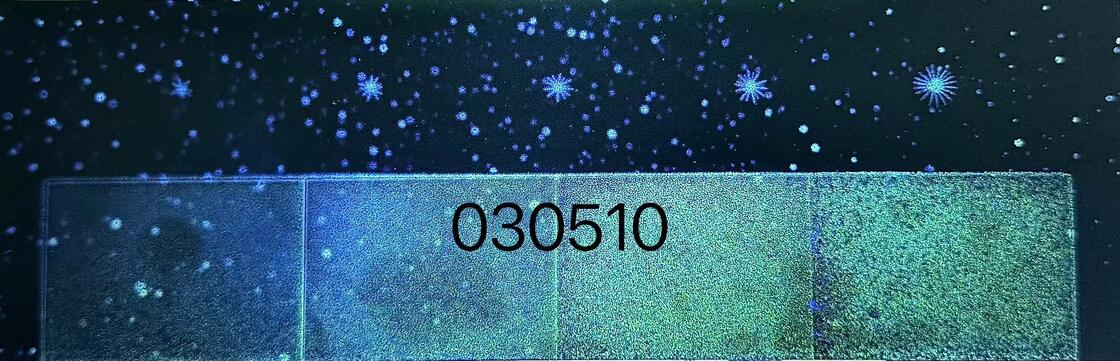

PT test panel ISO 3452-3 2
