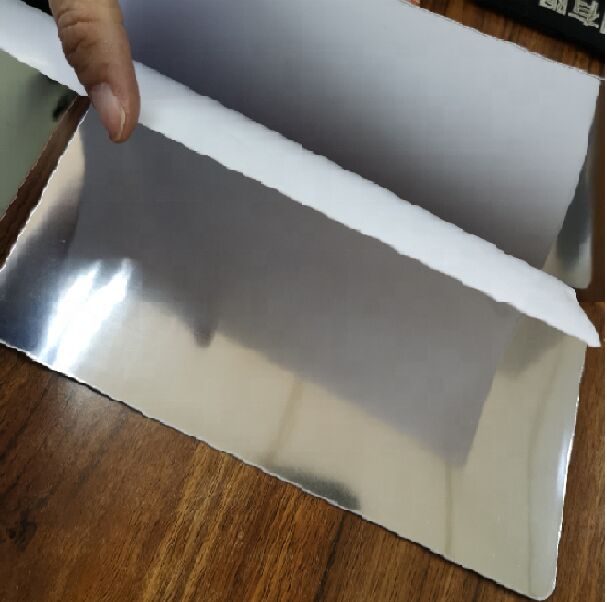

NDT Industrial X‑Ray Lead Intensifying Screen

Large Image : NDT Industrial X‑Ray Lead Intensifying Screen

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	Standard
Model Number:	Lead Intensifying Screen

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	carton
Delivery Time:	5-8 working days
Payment Terms:	T/T,Western Union

Contact Now

NDT Industrial X‑Ray Lead Intensifying Screen

Description

Name:

NDT Industrial X‑Ray Lead Intensifying Screen

Application:

Industrial Radiography Intensifying Screen

Use:

Industrial Radiographic Testing (RT) Film Imaging Enhancement

Keywords:

NDT Industrial X‑Ray Lead Intensifying Screen

Highlight:

NDT X-ray lead intensifying screen

industrial X-ray lead screen

non-destructive testing lead screen

NDT Industrial X‑Ray Lead Intensifying Screen

Function
Sensitization effect: Absorbs X/gamma ray energy, emits electrons, improves film/detector sensitivity efficiency, and shortens exposure time.
Improve image clarity: reduce scattered rays, enhance film contrast and resolution.
Reduce radiation dose: Under the same imaging quality, reduce tube voltage/tube current to protect equipment and personnel.
Suitable for high-energy radiation: can be used for industrial flaw detection sources such as high-energy X-rays, Ir 192, Co 60, etc.

Application

Intensifying screen for ASTM E94
Lead screen for ASME V radiography
Industrial radiography intensifying screen
X-ray film intensifying screen NDT

Lead screen	100x120x0.03mm
Lead screen	100x200x0.03mm
Lead screen	100x240x0.03mm
Lead screen	100x480x0.03mm
Lead screen	80.5x300.5x0.1mm
Lead screen	85x305x0.1mm
Lead screen	80.5x150x0.1mm
Lead screen	100x120x0.1mm
Lead screen	100x200x0.1mm
Lead screen	100x240x0.1mm
Lead screen	180x240x0.1mm
Lead screen	100x400x0.1mm
Lead screen	100x480x0.1mm
Lead screen	240x300x0.1mm
Lead screen	350x430x0.1mm
Lead screen	100x200x0.2mm
Lead screen	100x400x0.2mm
Lead screen	100x200x0.125mm
Lead screen	100x240x0.125mm
Lead screen	100x240x0.5mm
Lead screen	180x240x0.5mm
Lead screen	240x300x0.5mm
Lead screen	100x480x0.5mm
Lead screen	350x430x0.5mm
Lead screen	100x254x0.125mm (4"x10"x0.125mm)
Lead screen	100x381x0.125mm (4"x15"x0.125mm)

Typical application industries
Pressure vessel and pipeline welding inspection
Steel structures, bridges, shipbuilding
Aerospace castings and forgings for non-destructive testing
Internal defect detection of automotive parts and molds
Nuclear power, petroleum, and chemical pipeline inspection
Military, casting, and forging industries

NDT Industrial X‑Ray Lead Intensifying Screen 0

NDT Industrial X‑Ray Lead Intensifying Screen 1

NDT Industrial X‑Ray Lead Intensifying Screen 2
