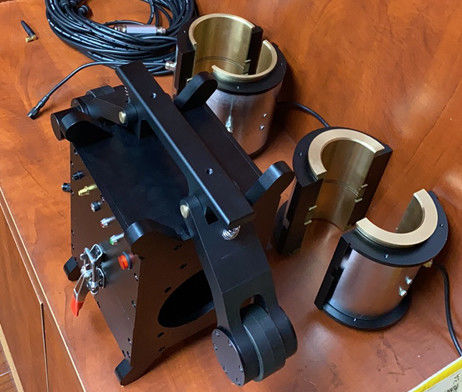

Magnetic Wire Rope Tester HRD-120

Magnetic Wire Rope Tester HRD-120

Core functionality
Electromagnetic/leakage magnetic detection (LF+LMA dual function): Axial saturated magnetization steel wire rope, capturing internal and external defects such as wire breakage, wear, rust, loose strands, wire jumping, deformation, material changes, etc.
LMA (metal cross-sectional area loss)+LF (magnetic leakage defect): Simultaneously quantitatively measure cross-sectional area loss and qualitatively measure local defects.
Online/offline detection: Move at a speed of 0-6m/s, without disassembling or stopping the machine for detection.
High precision positioning: with a position error of ± 0.2%, the accuracy of identifying broken wires can reach 99.99%.
Sound and light alarm+real-time display: defect real-time alarm, data dynamic visualization.
Data processing: USB directly connected to computer, automatically generates reports, stores, prints, compatible with Windows system.
Wide range adaptation: detection diameter Φ 1.5 – 300mm, equipped with different sensors.
Industrial protection: Waterproof, dustproof, shockproof, moisture-proof, suitable for harsh environments.

System configuration and model

All need to be customized: Wire rope flaw detection machine (48mm small - 78mm medium - 108mm large)

Note: 1, among which 7 tablet dual-use computer is optional (according to demand, the cost is additional);

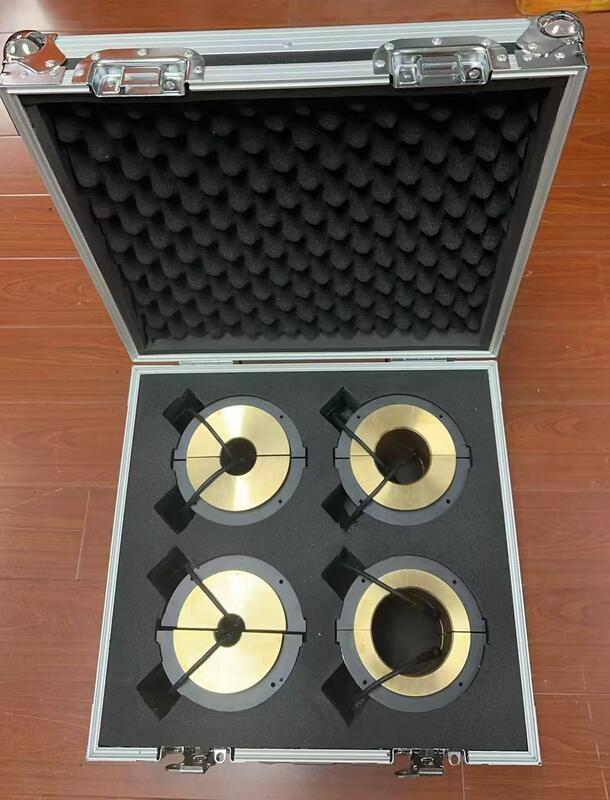

2, all sizes can be customized on demand (and can be accurately customized replaceable lining); Such as 48mm+24mm replaceable bushing.
