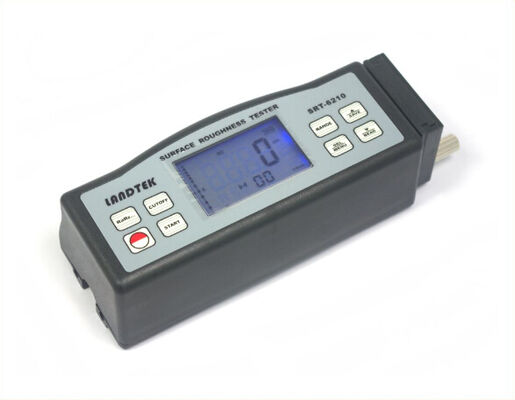

Ra Rz Rq Rt Digital Surface Roughnes Tester

Ra Rz Rq Rt Digital Surface Roughnes Tester
Ra Rz Rq Rt Digital Surface Roughnes Tester Ra Rz Rq Rt Digital Surface Roughnes Tester Ra Rz Rq Rt Digital Surface Roughnes Tester

Large Image :  Ra Rz Rq Rt Digital Surface Roughnes Tester

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO，CE
Model Number: SRT-6210
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: in carton
Delivery Time: 3~7 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 pcs per month
Contact Now

Ra Rz Rq Rt Digital Surface Roughnes Tester

Description
Product Name: Surface Roughnes Tester Accuracy: ≤±10%
Ra: 0.005-16.00um/0.020-629.9uinch Display: 4 Digits, 10 Mm LCD, With Blue Backlight
Highlight:

digital surface roughness tester

,

Ra Rz Rq Rt roughness tester

,

non-destructive surface testing equipment

Ra Rz Rq Rt Digital Surface Roughnes Tester



Technical parameters:

Parameter Model SRT6200 SRT6350 SRT6210 SRT6400
Tesing range Ra 0.05-10.00um/1.000-400.0uinch 0.005-16.00um/0.020-629.9uinch
Rq   0.005-16.00um/0.020-629.9uinch
Rz 0.020-100.0um/0.780-4000uinch 0.020-160.0um/0.078-6299uinch
Rt   0.020-160.0um/0.078-6299uinch
Accuracy ≤±10%
Resolution 0.001μm if reading ＜10μm; 0.01μm if reading＜100μm; 0.1μm if reading ≥100μm
Display 4 digits, 10 mm LCD, with blue backlight
Fluctuation of display ≤6%
Filter RC, PC-RC,Gauss, D-P
Sensor/pick-up Test Principle Inductance
Radius 10um 5 um
Material Diamond
Measurement Force 16mN(1.6gf) 4mN(0.4gf)
Angle 90°
Vertical Radius of Guiding Head 48mm
Maximum driving stroke 17.5mm/0.7inch
Cutoff length 0.25mm / 0.8mm / 2.5mm optional
Evaluation length 5L
Driving speed sampling length = 0.25mm Vt=0.135mm/s; sampling length = 0.8mm Vt=0.5mm/s; sampling length = 2.8mm Vt=0.5mm/s; returning Vt=1mm/s
Power Li-ion battery: rechargeable
Operating conditions Temp. 0~50℃, Humidity <80%
Weight 420g 350g 420g 350g

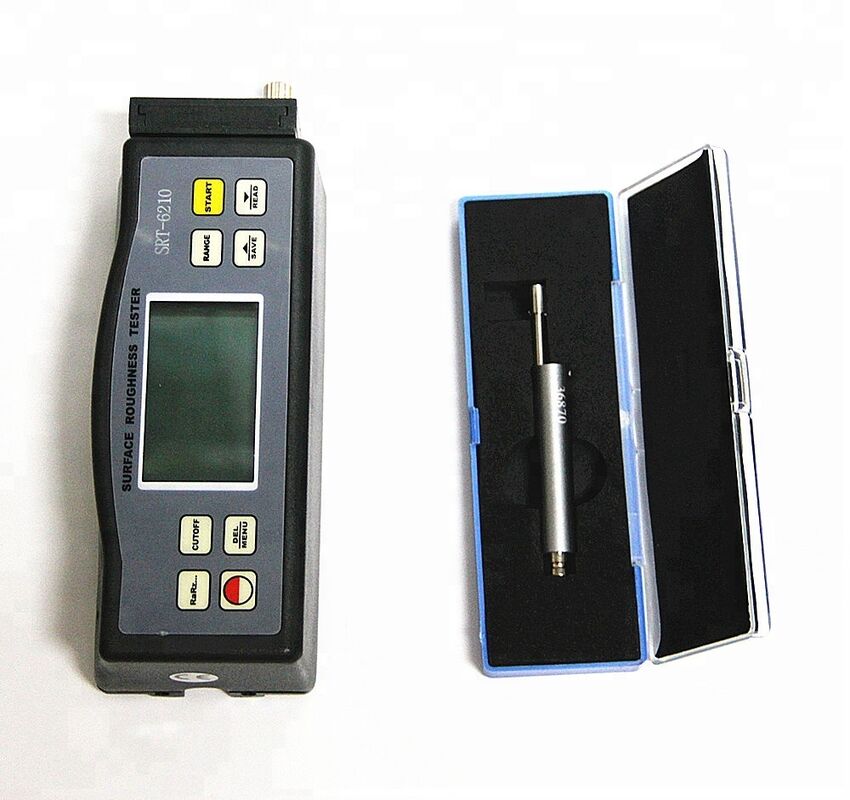

Standard delivery:
Carrying case.................1 Operation Manual...........1
Main unit.........................1 Screwdriver.....................1
Standard Sensor.............1 Adjustable Leg................1
Standard Sample Plate...1 Sensor Protector.............1
Power Adapter................1 Calibration certificate 1

Optional accessories:
1. Cable and Software for RS-232/USB and bluetooth
2. Extension Rod
3. Groove stylus
4. Curvature Probe
5. Measurement Stand

Ra Rz Rq Rt Digital Surface Roughnes Tester 0
