Dual Scale Wedge Feeler Gauge Taper Gauge for Welding Root Gap Measurement

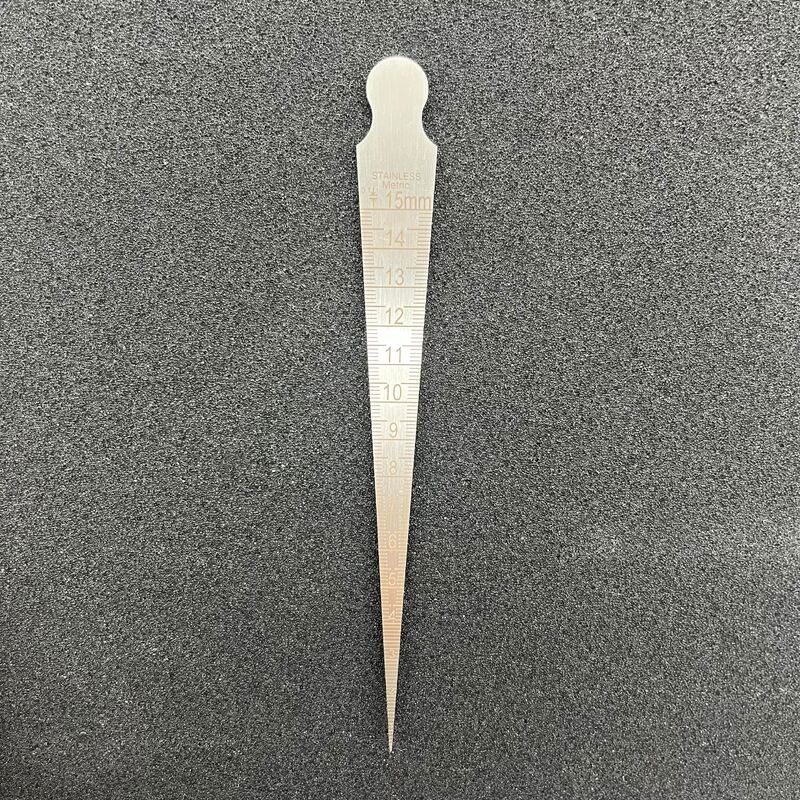

Large Image : Dual Scale Wedge Feeler Gauge Taper Gauge for Welding Root Gap Measurement

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Packaging Details:	Carton packing box
Delivery Time:	7-10 working days after receipt of your payment
Payment Terms:	T/T,Paypal
Supply Ability:	10sets/Month

Contact Now

Dual Scale Wedge Feeler Gauge Taper Gauge for Welding Root Gap Measurement

Description

Range:	1-15mm, 15-30mm, 30-45mm, 45-60mm	Material:	Stainless Steel
Scale:	Metric (mm) & Inch (in) Dual Scale	Division Value:	0.1 Mm
Accuracy:	±0.05 Mm
Highlight:	dual scale welding feeler gauge , wedge taper gauge for root gap , welding root gap measurement tool

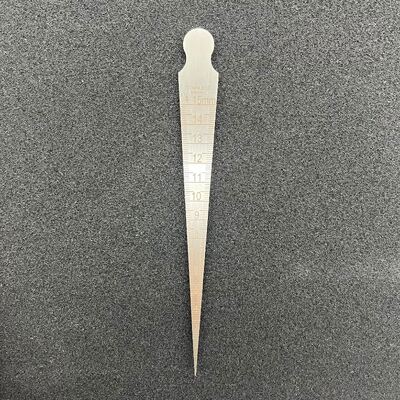

Dual Scale Wedge Feeler Gauge Taper Gauge for Welding Root Gap Measurement

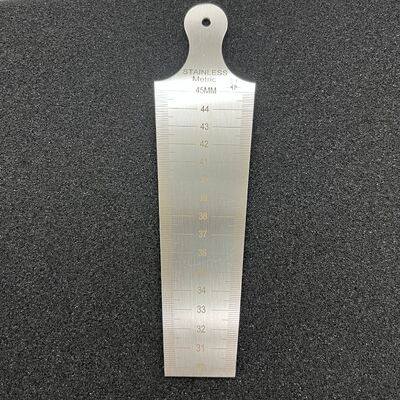

Taper gap gauge set is made of high-quality stainless steel with laser-etched dual scale (metric and inch) for clear and long-lasting reading. It includes four sizes: 1–15mm, 15–30mm, 30–45mm, and 45–60mm, with high precision of ±0.05mm. Widely used in welding inspection to measure root gap, bevel gap, misalignment (hi-lo), and crack width. Compact, lightweight, and easy to carry, it is an essential measuring tool for construction sites, factories, pressure vessels, pipelines, and steel structure industries.

Range	1-15mm, 15-30mm, 30-45mm, 45-60mm
Material	Stainless Steel
Scale	Metric (mm) & Inch (in) dual scale
Accuracy	±0.05 mm
Division Value	0.1 mm
Surface Treatment	Laser etched, clear and wear-resistant

Application:

Welding root gap measurement
Bevel gap inspection
Misalignment (hi-lo) test
Crack opening width measurement
General industrial gap detection
