Portable Multi-Function Fan Shape Welding Gauge for Fillet, Undercut and Gap Measurement

Large Image : Portable Multi-Function Fan Shape Welding Gauge for Fillet, Undercut and Gap Measurement

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Packaging Details:	Carton packing box
Delivery Time:	7-10 working days after receipt of your payment
Payment Terms:	T/T,Paypal
Supply Ability:	10sets/Month

Contact Now

Portable Multi-Function Fan Shape Welding Gauge for Fillet, Undercut and Gap Measurement

Description

Material:

Stainless Steel

Scale:

Metric & Inch Dual Scale

Accuracy:

±0.05 Mm

Highlight:

portable welding gauge for fillet measurement

multi-function welding gauge for undercut

welding gap measurement gauge with warranty

Portable Multi-Function Fan Shape Welding Gauge for Fillet, Undercut and Gap Measurement

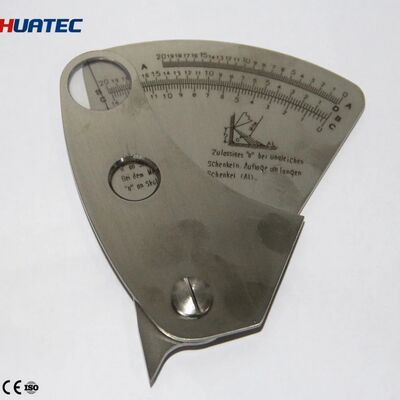

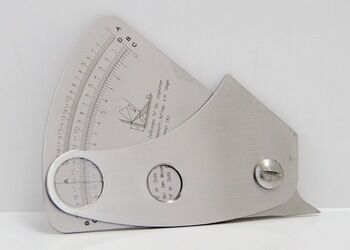

Fan-shaped welding gauge is a professional multi-function inspection tool made of high-quality stainless steel with laser-etched clear scales. It integrates multiple measuring functions including fillet weld size, undercut depth, weld reinforcement, root gap and misalignment. Designed with metric and inch dual scales for global use, it features high accuracy, easy operation and portability. Widely applied in welding quality inspection for steel structure, pipeline, pressure vessel, shipbuilding and engineering machinery industries.

Material	Stainless Steel
Scale	Metric & Inch Dual Scale
Accuracy	±0.05 mm

Application:

Measure fillet weld leg length and throat thickness
Detect undercut depth and pitting depth
Check weld reinforcement height
Measure root gap and misalignment
Application: Welding inspection, steel structure, shipbuilding, pipeline, pressure vessel
