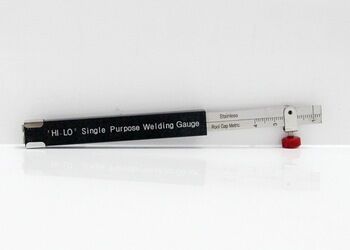

Single HI-LO Welding Gauge Metric Inch Dual Scale Pipeline Tester

Large Image : Single HI-LO Welding Gauge Metric Inch Dual Scale Pipeline Tester

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Packaging Details:	Carton packing box
Delivery Time:	7-10 working days after receipt of your payment
Payment Terms:	T/T,Paypal
Supply Ability:	10sets/Month

Contact Now

Single HI-LO Welding Gauge Metric Inch Dual Scale Pipeline Tester

Description

Range:

Root Gap: 0–8 Mm Misalignment (HI-LO): 0–6 Mm

Material:

Stainless Steel

Scale:

Metric & Inch Dual Scale

Accuracy:

±0.05 Mm

Highlight:

HI-LO welding gauge metric inch

pipeline tester dual scale

welding gauge with warranty

Single HI-LO Welding Gauge Metric Inch Dual Scale Pipeline Tester

single HI-LO welding gauge is a professional inspection tool specially designed for pipeline welding alignment. Made of high-quality stainless steel with clear etched dual scale (metric and inch), it can accurately measure root gap and misalignment (hi-lo) of pipe butt joints. With simple operation, high accuracy and good portability, it is widely used in pipeline construction, oil and gas engineering, pressure vessel and steel structure industries for welding alignment detection and quality control.

Measuring Range	Root Gap: 0–8 mm Misalignment (HI-LO): 0–6 mm
Material	Stainless Steel
Scale	Metric & Inch Dual Scale
Accuracy	±0.05 mm

Application:

Measure pipe root gap
Detect welding misalignment (hi-lo)
Check pipe alignment before welding

Application: Pipeline, oil & gas, pressure vessel, steel structure
