TG1956 High Precision Coating Thickness Tester with 5-Point Calibration Function

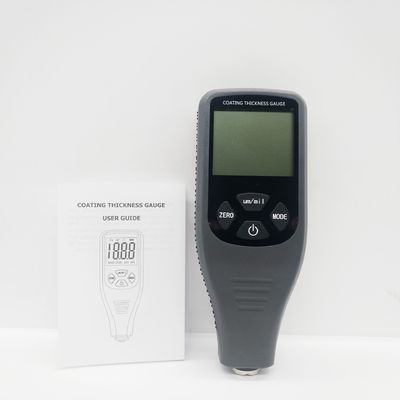

Large Image : TG1956 High Precision Coating Thickness Tester with 5-Point Calibration Function

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	TG1956

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	USD69-USD78/SET
Packaging Details:	Outer carton packaging
Delivery Time:	7-10 working days after receipt of your payment
Payment Terms:	T/T,Western Union,Paypal
Supply Ability:	10 Sets/Month

Contact Now

TG1956 High Precision Coating Thickness Tester with 5-Point Calibration Function

Description

Range:	0~1300um 0~51.2mil	Accuracy:	±(2.5%+1um) ±(2.5%+0.04mil)
Resolution:	0.1um/0.01mil	Calibration:	Points: ZERO/50/100/250/500/1000um
Operation Environment:	Temperature:0~40℃(32~104℉) Humidity:20%~90%RH
Highlight:	high precision coating thickness tester , coating thickness tester with calibration , non destructive testing equipment with warranty

TG1956 High Precision Coating Thickness Tester with 5-Point Calibration Function

Features:
FSTN LCD Display

Built-in Black Light

Integral Probe F&NF, Auto detecting attribute of substrates

Nice shell design for easy reading

Built-in Silicone Slip Strip

Measurement Range: 0~1300um

Accuracy: ±(2.5%+1um)

Resolution: 0.1um

Zero Calibration and 50/100/250/500/1000um Calibration Points

5 minutes auto power off to saving power

Power Supply: 4 x AAA batteries

Operating Temperature: 0 to 40℃ (32 to 104℉)

Size: 155mm x 62mm x 35mm (6.10” x 2.44” x 1.38”)

Weight: 125g (4.41 oz)

Technical specifications

	Probe F	Probe N
Principle	Magnetic Induction	Eddy Current
Range	0~1300um 0~51.2mil	0~1300um 0~51.2mil
Accuracy	±(2.5%+1um) ±(2.5%+0.04mil)	±(2.5%+1um) ±(2.5%+0.04mil)
Resolution	0.1um/0.01mil	0.1um/0.01mil
Calibration	Points: ZERO/50/100/250/500/1000um
Units	um, mil
minimum curvature radius convex: 1.5mm
minimum curvature radius concave: 25mm
minimum measuring area: Diameter 6mm
minimum thickness of substrate	0.5mm(0.02”)	0.3mm(0.012”)
Power	4 x AAA batteries
Operation Environment	Temperature:0~40℃(32~104℉) Humidity:20%~90%RH
Size	155mm x 62mm x 35mm (6.10” x 2.44” x 1.38”)
Weight	125g(4.41oz)

TG1956 High Precision Coating Thickness Tester with 5-Point Calibration Function 0
