Pocket Touch Screen Portable Surface Roughness Tester

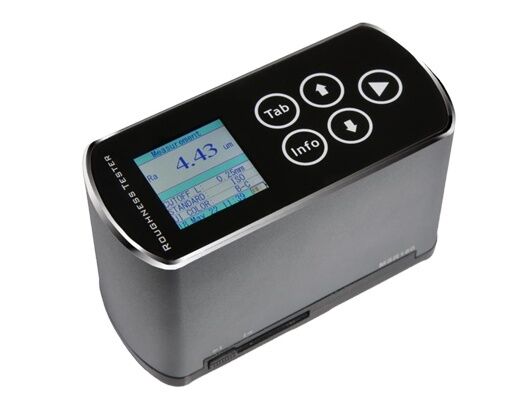

Large Image : Pocket Touch Screen Portable Surface Roughness Tester

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	ISO, CE, GOST
Model Number:	SRT-5050

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Standard export package
Delivery Time:	1-4working days
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	500Pcs

Contact Now

Pocket Touch Screen Portable Surface Roughness Tester

Description

Certification:	CE	Measuring Unit:	Um/uin
Resolution:	0.01um	Accuracy:	±10%
Product Name:	Surface Roughness Tester	Packing Dimension:	200mmx130mmx80mm
Highlight:	pocket surface roughness tester , portable touch screen roughness tester , surface roughness tester with warranty

Pocket Touch Screen Portable Surface Roughness Tester

Features

Create the smallest instrument in the NDT history
Innovative piezoelectric sensor
Graphic display of full measurement
Touch screen with easy operation
6 colors choice for different users
240x240 high solution display screen
Aluminum mold design makes durable and better anti-electromagnetic interference ability

Pocket Touch Screen Portable Surface Roughness Tester 0

Pocket Touch Screen Portable Surface Roughness Tester 1

Working Interface

Pocket Touch Screen Portable Surface Roughness Tester 2

Parameter

Parameters		Ra, Rz, Rq, Rt
Range		Ra, Rq 0.05-20um
		Rz ,Rt 0.1-50um
Accuracy		±10%
Resolution		0.01um
Probe	Type	Piezoelectric
	Stylus radius/angle	10um/90°
	Stylus material	Diamond
Measuring Force		5mN
Measuring Unit		Um/uin
Cut off		0.25mm/0.8mm Auto
Assessment Length		4 x Lamda
Traverse speed		0.75mm/s
Power		Built-in Rechargeable battery
Instrument Dimension		90mmx42mmx54mm
Weight		210g
Packing Dimension		200mmx130mmx80mm
Total Weight		530g

Standard Delivery

l Main unit

l Calibration block

l AD/DC adapter and data line

Pocket Touch Screen Portable Surface Roughness Tester 3

Pocket Touch Screen Portable Surface Roughness Tester 4

Pocket Touch Screen Portable Surface Roughness Tester 5
