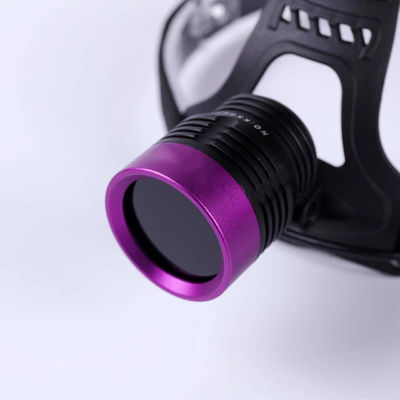

DG-90H Portable Helmet UV Lamp with Handheld Function 365nm LED Ultraviolet Light

Large Image : DG-90H Portable Helmet UV Lamp with Handheld Function 365nm LED Ultraviolet Light

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	DG-90H

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Packaging Details:	Carton packing box
Delivery Time:	7-10 working days after receipt of your payment
Payment Terms:	T/T,Paypal
Supply Ability:	10sets/Month

Contact Now

DG-90H Portable Helmet UV Lamp with Handheld Function 365nm LED Ultraviolet Light

Description

Light Source:	3 High-intensity Led Pure Ultraviolet Light Source	Strength:	38cm At The Center Strength Of 8000uw/cm2
Irradiation Area:	38cm Effective Spot Diameter Of 15cm	Light Source Life:	More Than 50,000 Hours
Center Wavelength:	365nm, Band Range: 360-370nm	Operating Current:	700mA
Highlight:	Portable helmet UV lamp 365nm , Handheld ultraviolet light LED , UV lamp non-destructive testing

DG-90H Portable Helmet UV Lamp with Handheld Function 365nm LED Ultraviolet Light

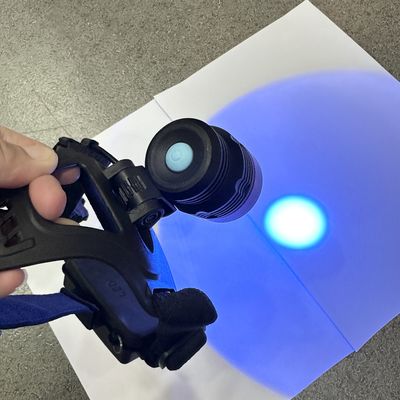

1. Installed on the helmet, free hands, on-site operation more convenient.

2. Can choose hand-held operation of the handle, as a handheld UV lamp use.
3. Adjustable illumination angle, convenient for field use.
4. Pure 365nm, no harmful UVB,UVC.
5. Battery-powered, light and small, to meet a variety of occasions to use.
6. Instant start, which is on and on, no need to wait.
7.38cm effective ultraviolet radiation area of up to 150mm.
8. Meet the national testing standards.
9. Equipped with UV protection glasses and suitcase.

Technical parameters:

light Source	3 High-intensity led pure ultraviolet light source
Strength	38cm at the center strength of 8000uw/cm2
irradiation area	38cm effective spot diameter of 15cm
light source life	more than 50,000 hours.
center wavelength	365nm, Band range: 360-370nm
operating current	700mA
Battery Voltage	4V
Power	9V
Battery	lithium battery
battery life	charge and discharge 500 times
Charger	220v,50hz

DG-90H Portable Helmet UV Lamp with Handheld Function 365nm LED Ultraviolet Light 0
