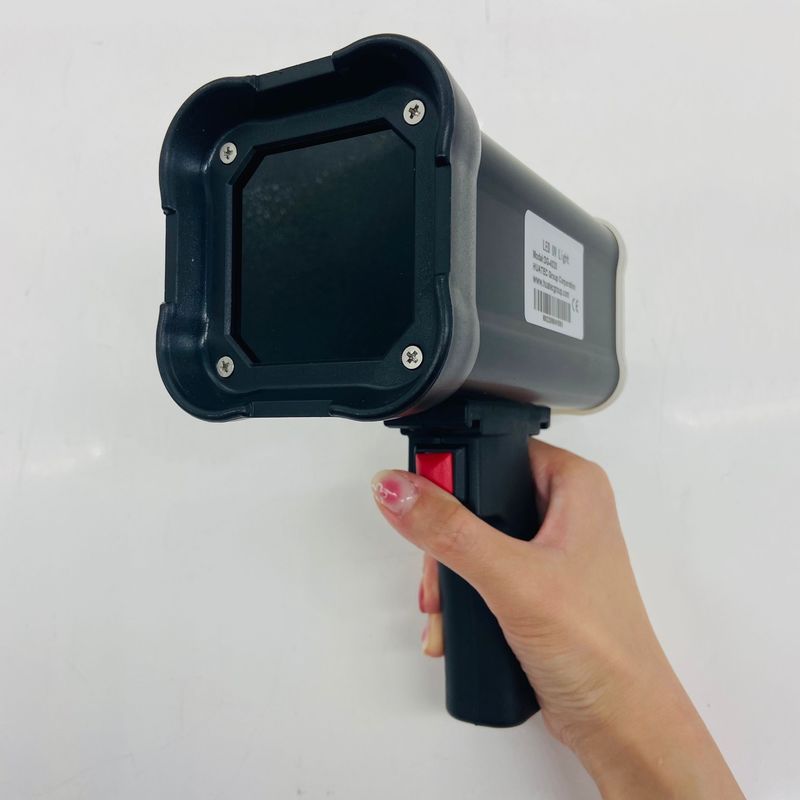

DG-6K 6000μW/cm² Handheld LED Black Light UV Flashlight

Large Image : DG-6K 6000μW/cm² Handheld LED Black Light UV Flashlight

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	DG-6K

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Packaging Details:	Carton packing box
Delivery Time:	7-10 working days after receipt of your payment
Payment Terms:	T/T,Paypal
Supply Ability:	10sets/Month

Contact Now

DG-6K 6000μW/cm² Handheld LED Black Light UV Flashlight

Description

UV(Light)-FLUX Indoor Temperature 25℃:	6000uW/cm²	White Light Content:	≤20LUX
Irradiation Area At Depth Of 380mm: (≥1000uw/cm²):	Φ300mm	Flux Error:	0-40℃ ±10%
Power Supply:	AC100- 240V，50/60Hz	Wavelength:	Room Temperature 25℃, 365nm±3nm (UVA)
Power:	UV LED-12VA	Light Distribution Characteristics:	Central Light Distribution
Highlight:	handheld UV flashlight , 6000μW/cm² black light , LED UV inspection tool

DG-6K 6000μW/cm² Handheld LED Black Light UV Flashlight

Features

 Original imported light source UV LED.

 UV-B content is 0.

 Output black light irradiation intensity 6000uW / cm²

 Only 560g with battery.

 AC100-230V wide voltage input.

 The temperature rise of continuous working outer surface is <8K (8 ℃).

 With color filter glass, white light content is less than 20LUX.

Project	Parameter / method
Form	Handheld
UV(Light)-FLUX 25 ℃ Room temperature ,Calibration at 380mm	6000uW/cm²
UV White light leakage	≤20LUX
White light	1200LUX
Coverage area calibration at 380mm	Approximately 300mm in diameter
FLUX error	0-40℃ ±10％
Light distribution characteristics	Center light distribution
power supply	AC100-240V 50/60Hz
power	UV LED-12VA
wavelength	Room temperature 25℃ 365nm±3nm(UVA)
Dimensions	157.5mm(W)76mm(D)177mm(H)
weight	560g With battery

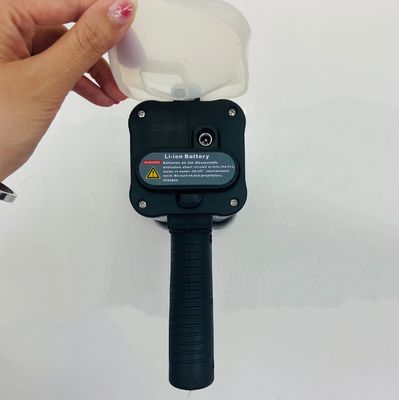

battery capacity	2200mA/H 12.6V
Charging time	2-3H
Battery life (cumulative time)	UV LED 2-3H
