HFV-1417P Adjustable Area Industrial LED Radiographic Viewer for Density >4.0 Film Evaluation

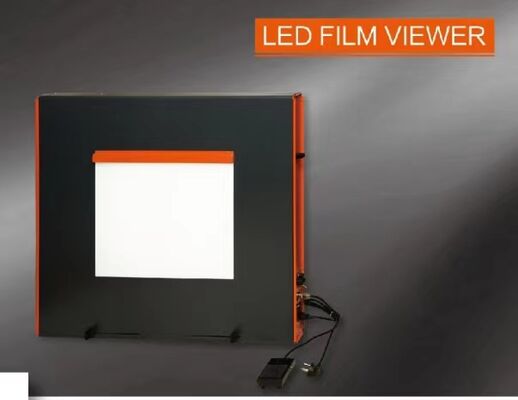

Large Image : HFV-1417P Adjustable Area Industrial LED Radiographic Viewer for Density >4.0 Film Evaluation

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	HFV-1417P

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	USD2965-USD3352/SET
Packaging Details:	aluminum alloy box+Outer carton packaging
Delivery Time:	7-10 working days after receipt of your payment
Payment Terms:	T/T,Western Union,Paypal
Supply Ability:	10 Sets/Month

Contact Now

HFV-1417P Adjustable Area Industrial LED Radiographic Viewer for Density >4.0 Film Evaluation

Description

Maximum Light Intensity:	＞100,000cd/㎡	Viewing Area Adjustable:	43cm36cm To 15cm8cm
Easily View:	＞4.0 Density	Uniform Viewing Area:	95% Full Screen
Control Mode:	Manual+Foot-switch	Power Requirements:	85-264VAC/47-60Hz
Power:	600W
Highlight:	adjustable industrial LED radiographic viewer , high-density film evaluation viewer , non-destructive testing film viewer

HFV-1417P Adjustable Area Industrial LED Radiographic Viewer for Density >4.0 Film Evaluation

HFV-1417P LED Industrial Radiographic Film Viewer is a high-performance NDT inspection instrument designed for industrial radiographic film evaluation. With highly reliable and innovative structure design, it provides stable and efficient viewing performance for various non-destructive testing applications.

The viewer features an optimized right-side panel control design for easy operation, supporting both manual control and foot-switch control to meet different working habits. It delivers an ultra-high light intensity of more than 100,000 cd/㎡, enabling clear observation of films with density over 4.0. The full-screen uniformity reaches 95%, ensuring accurate and reliable defect identification.

Equipped with 0%–100% continuous dimmer control, users can adjust the brightness freely according to actual needs. The efficient air cooling system keeps the surface temperature below 18℃, guaranteeing long-term stable operation. The viewing area is adjustable from 43cm×36cm to 15cm×8cm, making it suitable for films of different sizes.

Adopting a wide voltage input of 85–264VAC/47–60Hz and 600W high power, the viewer has strong adaptability to various power supply environments. With a compact size of L80cm×W74cm×T8cm plus 6cm support and a net weight of 28kg, it is easy to install and operate.

It is widely used in pressure equipment, petroleum, chemical, machinery manufacturing, aerospace and other fields for industrial radiographic film observation and evaluation, and is an ideal choice for high-end NDT inspection.

Design	Highly reliable and innovative
Easy to control	Optimized right-side Panel control design
Maximum Light Intensity	＞100,000cd/㎡
Easily View	＞4.0 density
Control mode	Manual+Foot-switch
Uniform Viewing Area	95% Full Screen
Dimmer Control	0% to 100% continuous
Cooling Method	Air cooling
Surface Temperature	＜18°
Power Requirements	85-264VAC/47-60Hz
Power	600W
Viewing area adjustable	43cm36cm to 15cm8cm
Dimensions	L80cmW74cmT8cm+6cm (support)
Net weight	28kgs, Gross weight:42kgs

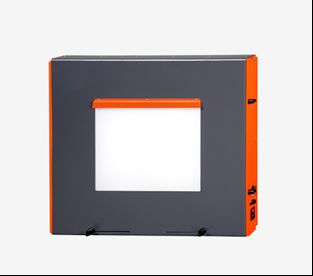

HFV-1417P Adjustable Area Industrial LED Radiographic Viewer for Density >4.0 Film Evaluation 0
