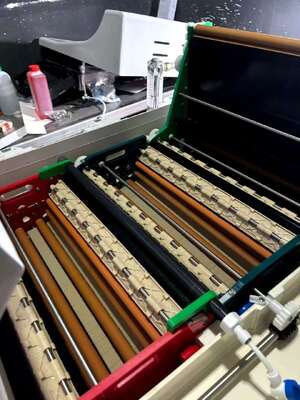

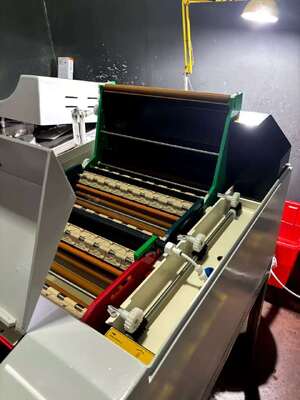

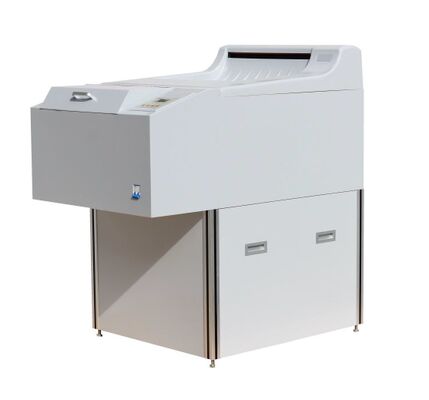

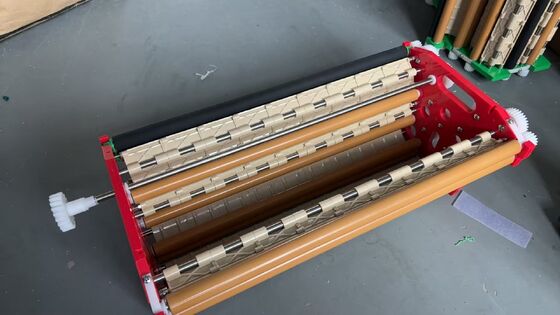

Industrial Film Processor Widely Used in Quality Inspection of Boilers,Pressure Vessels, Oil and Gas Pipeline

Large Image : Industrial Film Processor Widely Used in Quality Inspection of Boilers,Pressure Vessels, Oil and Gas Pipeline

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	HDL-430D

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	USD8625-USD9750/SET
Packaging Details:	Wooden box packaging
Delivery Time:	7-10 working days after receipt of your payment
Payment Terms:	T/T,Western Union,Paypal
Supply Ability:	10 Sets/Month

Contact Now

Industrial Film Processor Widely Used in Quality Inspection of Boilers,Pressure Vessels, Oil and Gas Pipeline

Description

Film Size:	Minimum: 50×100mm, Max. Width: 450mm	Processing Time:	3.2～16min. （0.1min. Adjustable）
Feed-in Speed:	155～765 Mm/min.	Tank Volume:	Dev. Fix. Wash.13L For Each
Dev. Temp.:	20～40℃ （0.1℃ Adjustable）	Dry Temp.:	20～70℃ （5℃ Adjustable）
Power Consumption:	110～240V 10A, 50 Or 60Hz
Highlight:	industrial film processor for boilers , pressure vessel inspection equipment , oil pipeline NDT film processor

Industrial Film Processor Widely Used in Quality Inspection of Boilers,Pressure Vessels, Oil and Gas Pipeline

The machine is widely used in the quality inspection of boilers, shipbuilding, pressure vessels, oil and gas pipeline construction, aerospace and other equipment, and is widely praised by customers in the testing industry

Model	HDL-430D
Film Size	Minimum: 50×100mm, Max. Width: 450mm
Film Type	roll orflat film
Film probes	4 sets of micro inductive probes
Processing Time	3.2～16min. (0.1min. adjustable)
Feed-in Speed	155～765 mm/min.
Processing Capacity	350×430mm 22-109 sheets/hr,80×300mm 110-545 sheets/hr (when 5.4 min processing time)
Tank Volume	Dev. Fix. Wash.13L for eac
Supplementary	automatically replenish water according to film size,waterreplenishment 50～700ml/㎡
Dev. Temp	20～40℃ (0.1℃ adjustable)
Fix. Temp	automatically adjustable
Dry Temp	20～70℃ (5℃ adjustable)
Water Temp	5～30℃
Washing Controlling	when working: automatic water intake less than2L/min, standby: automatic shutdown
Power Consumption	110～240V 10A, 50 or 60Hz
Weight	G.W: 128kg, N.W: 88kg
Dimension	appr.: 108×71.5×113cm

Industrial Film Processor Widely Used in Quality Inspection of Boilers,Pressure Vessels, Oil and Gas Pipeline 0
