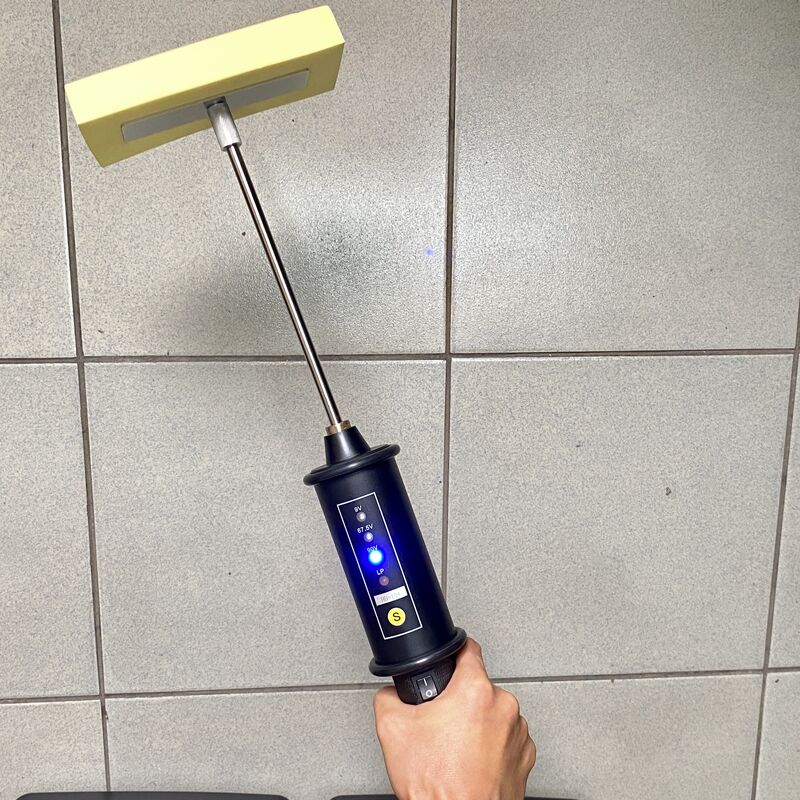

High Accuracy Wet Sponge Pinhole Leak Detector Holiday Detector

High Accuracy Wet Sponge Pinhole Leak Detector Holiday Detector
High Accuracy Wet Sponge Pinhole Leak Detector Holiday Detector
High Accuracy Wet Sponge Pinhole Leak Detector Holiday Detector High Accuracy Wet Sponge Pinhole Leak Detector Holiday Detector High Accuracy Wet Sponge Pinhole Leak Detector Holiday Detector

Large Image :  High Accuracy Wet Sponge Pinhole Leak Detector Holiday Detector

Product Details:
Place of Origin: China
Brand Name: Huatec
Certification: ISO CE GOST
Model Number: HD-104
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: in High quality carton
Delivery Time: 5~7 days after payment
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets per month
Contact Now

High Accuracy Wet Sponge Pinhole Leak Detector Holiday Detector

Description
Product Name: Wet Sponge Pinhole Leak Detector Model: HD-104
Accuracy Of Voltage: +5% Battery: Li-pol Rechargeble Battery 1 1 .1V/1 1 00mA
Power: ≤0.5W Earth Wire Length: 4m
Highlight:

wet sponge pinhole leak detector

,

high accuracy holiday detector

,

non destructive testing equipment

High Accuracy Wet Sponge Pinhole Leak Detector Holiday Detector



HD-104 wet sponge pinhole leak detector applies wet sponge testing technology and meets the new standard of wet sponge leak detector in design -- namely, high quality, low voltage leak detector. Used for measuring pinhole, gap, damage and other defects of insulating coating on conductive substrate under 500 microns. HD104 is a multi - voltage leak detector. HD104 wet sponge pinhole leak detector meets the following standards: ASTM 3894.2, ASTM D-5162 A, ASTM G6, ASTM G62-A, BS 7793-2, ISO 8289, ISO 8289 A, ISO 14654, NACE RP 0188.



2. Main technical performance
1. Machine performance:
(1) three voltages are available: 9V/ 67.5V /90V;
(2) visible signal and audio alarm;
(3) low voltage indicator;
(4) easy loading and unloading signal line;
(5) large standard sponge;
(6) portable packing cases;

2. Detailed parameters:
applicable test thickness 9V -- 300 microns;
67.5 V - 500 microns;
90 V - 500 microns;
sensitivity 9 V - 90 k Ω + 5%;
67.5 V - 125 k Ω + 5%;
90 V - 400 k Ω + 5%;
voltage accuracy +5%
battery lithium polymer battery (Li-pol) 11.1V /1100mA
power consumption ≤ 0.5W
weight 500g
size 290×53×53mm
voltage indication three voltages are indicated by corresponding LED lights
battery charging specially equipped with 12VDC lithium battery constant voltage
charger
sponge size 170×70×30mm
Length of probe rod 195mm
length of ground wire 4m



Standard delivery
HD-104 pinhole main unit 1pc
Standard wand and flat sponge 1pc
Earth wire 1pc
Charger 1pc
Carrying case 1poc
Manual 1pc
Warranty card 1pc

High Accuracy Wet Sponge Pinhole Leak Detector Holiday Detector 0

High Accuracy Wet Sponge Pinhole Leak Detector Holiday Detector 1

High Accuracy Wet Sponge Pinhole Leak Detector Holiday Detector 2
