PAUT Phased Array Radius Calibration Block with 63 SDH Holes for Ultrasonic Testing

Large Image : PAUT Phased Array Radius Calibration Block with 63 SDH Holes for Ultrasonic Testing

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	PAUT

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	USD345-USD390/SET
Packaging Details:	ABS box+Outer carton packaging
Delivery Time:	7-10 working days after receipt of your payment
Payment Terms:	T/T,Western Union,Paypal
Supply Ability:	10 Sets/Month

Contact Now

PAUT Phased Array Radius Calibration Block with 63 SDH Holes for Ultrasonic Testing

Description

Material:

1018 Steel

Standard:

IIW ISO 19675：2017

Highlight:

PAUT phased array calibration block

ultrasonic testing SDH holes block

radius calibration block NDT equipment

PAUT Phased Array Radius Calibration Block with 63 SDH Holes for Ultrasonic Testing

The Phased Array Radius Calibration Block is a general purpose Phased Array calibration block used for evaluation of system performance characteristics. Use it as baseline block to determine long-term instrument performance changes, generate DAC curves, evaluate focusing ability, beam steering capability, and system resolution. With a variety of SDH targets at various metal paths, this small, lightweight block is also perfect for customer demonstrations of phased array ultrasonic capabilities.The PAUT IIW Block, made in accordance with IIW ISO 19675:2017 .

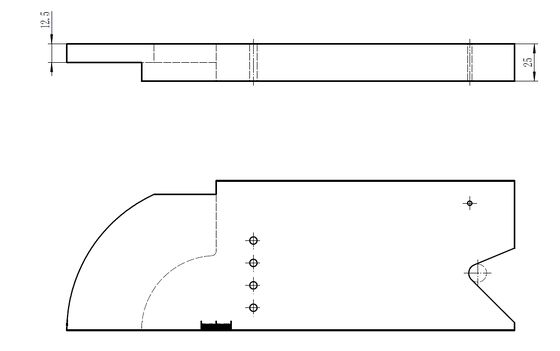

Geometry:

Dimensions	25mm wide x 100mm tall x 300mm long, with 100mm and 50mm radii
Material	1018 Steel,

PAUT Phased Array Radius Calibration Block with 63 SDH Holes for Ultrasonic Testing 0
