H33 Series 160kV High Power X-ray Glass Tube for Airport Baggage Scanner Security System

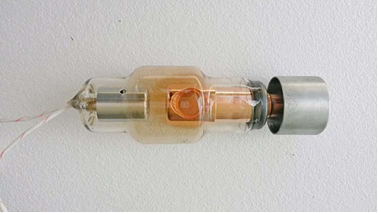

Large Image : H33 Series 160kV High Power X-ray Glass Tube for Airport Baggage Scanner Security System

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	H33 Series

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Packaging Details:	Carton packing box
Delivery Time:	7-10 working days after receipt of your payment
Payment Terms:	T/T,Paypal
Supply Ability:	10sets/Month

Contact Now

H33 Series 160kV High Power X-ray Glass Tube for Airport Baggage Scanner Security System

Description

Tube Voltage (kVp):

160KV

Radiator Type Optional:

Φ52mm×39mm、Φ65mm×39mm

Use:

Airport X Ray Safe Examination Inspection System

Size:

Glass: Φ68mm、Total Length:190mm

Highlight:

160kV X-ray glass tube for baggage scanners

H33 Series X-ray tube for security systems

High power X-ray tube with warranty

H33 Series 160kV High Power X-ray Glass Tube for Airport Baggage Scanner Security System

Specifications for the Glass tube for airport x ray safe examination inspection system

Note: Radiator type optional:Φ52mm×39mm,Φ65mm×39mm

Number	Model	Technical parameters					Beam angle	Size
Number	Model	Tube voltage (kVp)	Tube current (mA)	Focus sport(mm)	Filament voltage(V)	Filament current(A)	Beam angle	Size
1	H33A	160	2	0.8×0.8	5.3	4.4	40°+5°	Glass: Φ68mm,Total length:190mm
2	H33B	160	4	0.3×0.8	4	3.5±0.2	110°×4°	Glass:Φ68mm, Total length:190mm
3	H33C	160	4	2.5×0.8	3.5±0.2	3.7±0.2	110°×20°	Glass:Φ68mm, Total length:190mm
4	H33D	160	2	0.8×0.8	3.5±0.2	3.7±0.2	80°×60°	Glass:Φ68mm,Total length:190mm
5	H33E	160	4	0.8×0.8	3.5±0.2	3.7±0.2	60°	Glass:Φ68mm,Total length:190mm
6	H33F	160	5	0.8×0.8	3.5±0.2	3.7±0.2	40°×60° Double angle	Glass:Φ68mm,Total length:190mm

H33 Series 160kV High Power X-ray Glass Tube for Airport Baggage Scanner Security System 0
