HXH20 High-Speed Rotating Anode Medical X-ray Tube 150kV for Diagnostic Imaging

Large Image : HXH20 High-Speed Rotating Anode Medical X-ray Tube 150kV for Diagnostic Imaging

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	HXH20

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Packaging Details:	Carton packing box
Delivery Time:	7-10 working days after receipt of your payment
Payment Terms:	T/T,Paypal
Supply Ability:	10sets/Month

Contact Now

HXH20 High-Speed Rotating Anode Medical X-ray Tube 150kV for Diagnostic Imaging

Description

Tube Voltage (kVp):	150KV	Anode Speed (r/min):	2700(50Hz) 3200(60Hz) 9700(180Hz)
Inherent Filtration(mmAl) （75kV）:	≥1.5	Angle:	12°
Nominal Focal Spot Value:	0.6（small） 1.2（big）	Maximum Continuous Heat Dissipation(W):	1800
Maximum Anode Heat Content(kJ):	445(600kHU)
Highlight:	High-Speed Rotating Anode X-ray Tube , Medical X-ray Tube 150kV , Diagnostic Imaging X-ray Tube

HXH20 High-Speed Rotating Anode Medical X-ray Tube 150kV for Diagnostic Imaging

一.SCOPE:

It is used together with medical diagnostic X-ray generator for medical X-ray diagnosis.

nominal X-ray tube voltage(kV)	filament characteristics(V)	target
		material	angle	diameter
150	If max=5.5A ,Uf=9±2(small)	Re-W	12°	100
	If max=5.5A ,Uf=13.5±2(big)

anode speed

(r/min)

Inherent

filtration(mmAl)

(75kV)

Weight

(≤kg)

nominal focal

spot value

2700(50Hz)

3200(60Hz)

9700(180Hz)

≥1.5

0.6(small)

1.2(big)

nominal anode input

power(kW) (0.1s)

maximum anode heat

content(kJ)

maximum continuous

heat dissipation(W)

22/55(50Hz)

25/60(60Hz)

40/100(180Hz)

445(600kHU)

1800

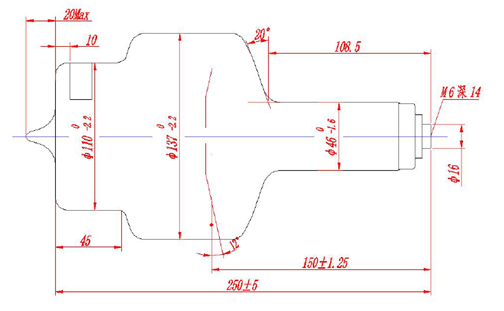

HXH20 High-Speed Rotating Anode Medical X-ray Tube 150kV for Diagnostic Imaging 0

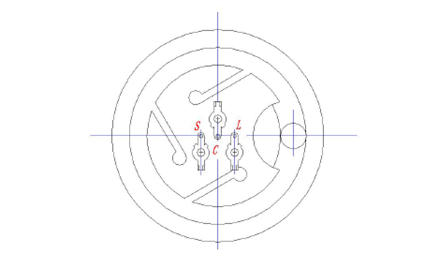

HXH20 High-Speed Rotating Anode Medical X-ray Tube 150kV for Diagnostic Imaging 1

HXH20 High-Speed Rotating Anode Medical X-ray Tube 150kV for Diagnostic Imaging 2
