FD-500mini Ultra-Small Ultrasonic Metal Defect Detector with DAC/AVG Function for Industrial NDT

FD-500mini Ultra-Small Ultrasonic Metal Defect Detector with DAC/AVG Function for Industrial NDT
FD-500mini Ultra-Small Ultrasonic Metal Defect Detector with DAC/AVG Function for Industrial NDT FD-500mini Ultra-Small Ultrasonic Metal Defect Detector with DAC/AVG Function for Industrial NDT

Large Image :  FD-500mini Ultra-Small Ultrasonic Metal Defect Detector with DAC/AVG Function for Industrial NDT

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: CE
Model Number: FD-500mini
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Packaging Details: Carton packing box
Delivery Time: 10-15 working days after receipt of your payment
Payment Terms: T/T,Paypal
Supply Ability: 5sets/Month
Contact Now

FD-500mini Ultra-Small Ultrasonic Metal Defect Detector with DAC/AVG Function for Industrial NDT

Description
Bandwidth: 0.1MHz～20MHz Gain: 120dB, Pace 0.1dB, 0.6dB, 1dB, 2dB, 6dB
Detection Range: 10m (longitudinal Wave Carbon Steel) , Pace 100mm、10mm、0.1mm Pulse Voltage: 25V～300V Stepping 25V
Quantitative Mode: DAC Curve, AVG(DGS) Curve Display Screen: High Definition 5.0-inch 800×480 LCD, IPS_LCD
Gate Alarm: Gate A And B Alarm, Lost Wave/incoming Wave Data Storage: 8GB SD Card
Highlight:

ultra-small ultrasonic defect detector

,

metal defect detector with DAC

,

industrial NDT ultrasonic tester

FD-500mini Ultra-Small Ultrasonic Metal Defect Detector with DAC/AVG Function for Industrial NDT


FD-500mini ultrasonic flaw detector is an ultra-small, portable measuring instrument that can measure the thickness of metal or magnetically permeable materials, detect internal defects (cracks, inclusions, pores, etc.) and automatically locate, evaluate and diagnose.It is widely used in test laboratory, special inspection institute, shipbuilding, oil and gas equipment, aerospace, chemical industry, electric power, steel, metallurgy, railroad, automobile manufacturing, machinery, boiler pressure vessel, special equipment, petroleum pipeline, construction industry, mold manufacturing and other industries.



Product technical parameters

Bandwidth

0.1MHz～20MHz

Gain

120dB, pace 0.1dB, 0.6dB, 1dB, 2dB, 6dB

Wave filter

Broadband, 1M, 1.25M, 2.5M, 5M, 10M, 15M, 1M-5M

Sampling rate

Hardware sampling rate 100MSPS, equivalent sampling rate 400MSPS

Detection mode

Full wave, positive half wave, negative half wave, RF, envelope

Detection range

10m (longitudinal wave carbon steel) , pace 100mm,10mm,0.1mm

Pulse mode

Sharp pulse, square wave, dual-square wave

Pulse voltage

25V～300V  Stepping 25V

Pulse width

0ns～500ns continuously adjustable, 5ns pace

Damping

Strong (100Ω) ,weak (1000Ω) adjustable

Pulse repetition

frequency

Automatic or manual, auto Scope (200Hz-1KHz), manual scope (0-10KHz)

Probe channel

200 groups, supporting operations such as creating, previewing, deleting, renaming, overwriting, and restoring

Gate alarm

Gate A and B alarm, lost wave/incoming wave

Gate mode

Independent gate A, gate B

Measurement mode

Peak, Front edge, J Front edge

Quantitative mode

DAC curve, AVG(DGS) curve

Flaw detection

standards

AWS D1.1/D1.5, NB/T 47013, GB/T 29712, GB/T 11345

Save content

Single-frame, multi-frame recording (≤500 frames), screenshots, B-scan screenshots

Auxiliary functions

automatic gain, peak memory, waveform freezing, channel management, gate

alarm, gate expansion, automatic gate, full screen touch, virtual keyboard, color half span, quick screenshot

Display screen

High definition 5.0-inch 800×480 LCD, IPS_LCD

Probe interface

Dual LEMO-00

Output interface

Type-C1, MINI USB

B-scan imaging

support up to 700 groups of A-scan synthesis, and the highest resolution is φ2mm

Data storage

8GB SD card

Charger

PD fast charging, standard Type-C interface(100～240V, 50～60Hz)

Size

183mm×113mm×45mm

Weight

700g, includes battery without rubber boot

Language

English

Unit

Metric,imperial

Battery

7.4V 8000mAh Lithium battery, 12 hours of battery life

Operating temperature

-10℃～55℃

Resolution

40dB (Metrological performance requirements:≥26dB)

Dynamic range

32dB (Metrological performance requirements:≥26dB)

Sensitivity margin

50dB (Metrological performance requirements:≥42dB)

Vertical linearity

1.8% (Metrological performance requirements:≤6%)

Horizontal

linearity

0.5% (Metrological performance requirements:≤2%)


Features

l   The body is lightweight and suitable for one-handed operation.

l   PD65W fast charge + 12 hours long battery life.

l   5.0-inch IPS high-definition display with a brand new UI interface.

l   Support full-screen touch, quick gesture operation, virtual keyboard, easy to use

l   With DAC, AVG, automatic gain, peak memory, color half-span and other professional functions.

l   Including Chinese and English switching, data export to SD card, online upgrade, screen capture and many other practical functions.



Standard configuration

Number

Name

Quantity

Note

1

host

1



2

high-precision straight probe

1

2.5MHz Φ20

3

high-precision angle probe

1

2.5MHz 10x10 K2

4

probe line

1



5

PD65W charger

1



6

power line

1



7

instructions

1



8

Certificate of conformity

1



9

warranty card

1



10

SD card (8G)

1



11

Adapter plug (C to USB)

1

Can be connected to a PC to export data



Optional Configurations

Number

Name

Quantity

Note

1

Power bank

1

Battery capacity: 20000mAh/7.4V;74Wh

2

SD card(16G,32G,64G)

1

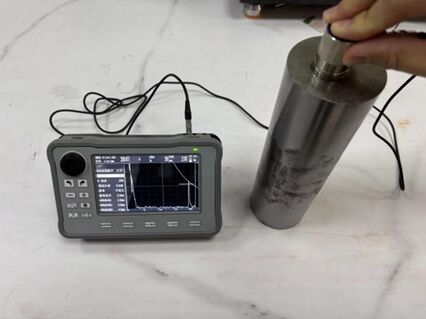

FD-500mini Ultra-Small Ultrasonic Metal Defect Detector with DAC/AVG Function for Industrial NDT 0

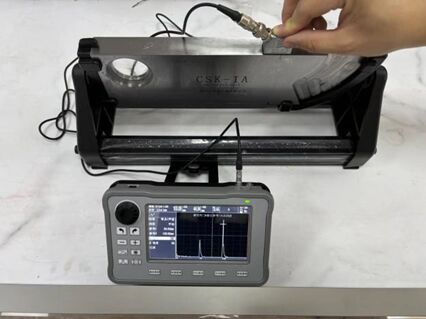

FD-500mini Ultra-Small Ultrasonic Metal Defect Detector with DAC/AVG Function for Industrial NDT 1
