HT-6710A Digital Sand Mould Surface Hardness Tester Type A for Wet Sand Core Molding

HT-6710A Digital Sand Mould Surface Hardness Tester Type A for Wet Sand Core Molding
HT-6710A Digital Sand Mould Surface Hardness Tester Type A for Wet Sand Core Molding HT-6710A Digital Sand Mould Surface Hardness Tester Type A for Wet Sand Core Molding

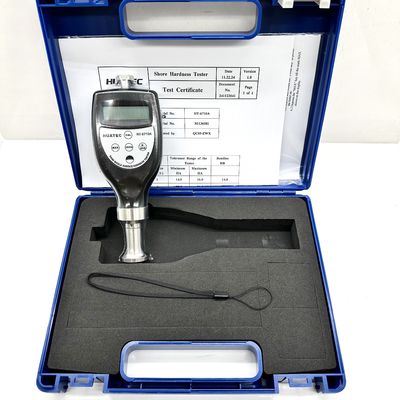

Large Image :  HT-6710A Digital Sand Mould Surface Hardness Tester Type A for Wet Sand Core Molding

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: CE
Model Number: HT-6710A
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: USD287/set - USD325/set
Delivery Time: 7-10 working days after receipt of your payment
Payment Terms: T/T,Paypal
Supply Ability: 10sets/Month
Contact Now

HT-6710A Digital Sand Mould Surface Hardness Tester Type A for Wet Sand Core Molding

Description
Stroke: 2.50mm Load: 237g
Pressure Load: 90g Display: 4 Digits, 10mm LCD
Display Range: 0H~100HA Accuracy: ≤±1HA
Resolution: 0.1HA Operating: Temperature: 0~40°C, Humidity: <80%RH
Highlight:

Digital sand mould hardness tester

,

Wet sand core molding tester

,

Non-destructive surface hardness tester

HT-6710A Digital Sand Mould Surface Hardness Tester Type A for Wet Sand Core Molding


Application

The Sand Mould Surface Hardness Tester is used to measure the surface hardness of the sand mould/core of the wet mold and provide technical parameters for the formulation of the molding process.


Specifications

Model HT-6710A
Stroke 2.50mm
Load 237g
Pressure Load 90g
Shape and size of indenter Spherical R2.5
Unit HA
Display 4 digits, 10mm LCD
Parameters Tested Result / Mean Value / Max. Value
Display Range 0H~100HA
Testing Range 10H~90HA
Accuracy ≤±1HA
Resolution 0.1HA
Battery Indicator Low Battery Indicator
Auto Switch Off √
Operating Temperature: 0~40°C Humidity: <80%RH
Power Supply 2x1.5V AAA (UM-4) Battery
Dimensions 162mmx65mmx28mm
Weight 170g
Standard Accessories Main Unit HT-6710A

Carrying Case (B04)

Operation manual and calibration certificate
Optional Accessories USB Data Cable with Software

Blue tooth Data Adapter with Software

Features

* It meets standards of DIN 53505, ISO 868, ISO 7619, ASTMD 2240, JISK7215.
* Type A: Suitable for the surface hardness test of fine sand mold/core in manual or mechanical low and medium pressure molding.
* With average calculate function.
* Peak value deposit function.
* Under-voltage alarm function.
* Use USB data output to connect with PC.
* Provide Blue tooth data output choice.

HT-6710A Digital Sand Mould Surface Hardness Tester Type A for Wet Sand Core Molding 0

HT-6710A Digital Sand Mould Surface Hardness Tester Type A for Wet Sand Core Molding 1HT-6710A Digital Sand Mould Surface Hardness Tester Type A for Wet Sand Core Molding 2
