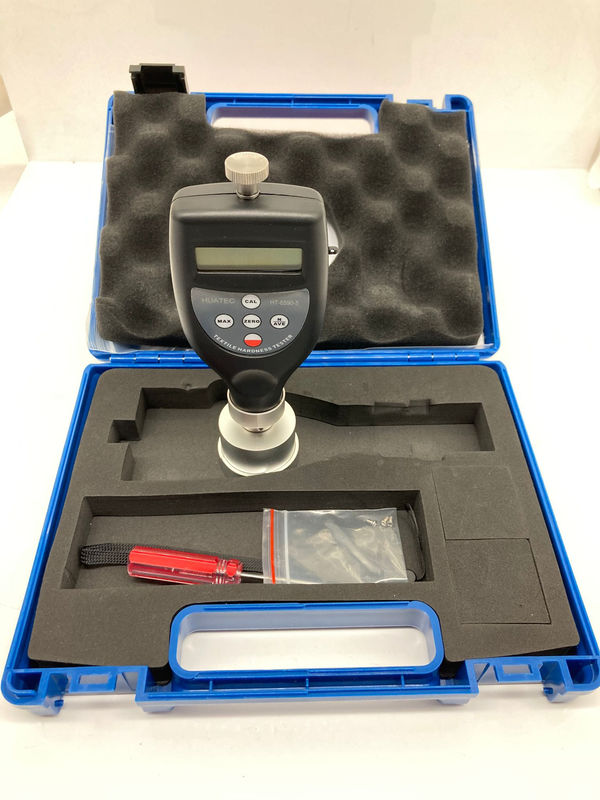

HT-6590-5 TTextile Winding Density Tester Warp Durometer with Convertible Probe

HT-6590-5 TTextile Winding Density Tester Warp Durometer with Convertible Probe

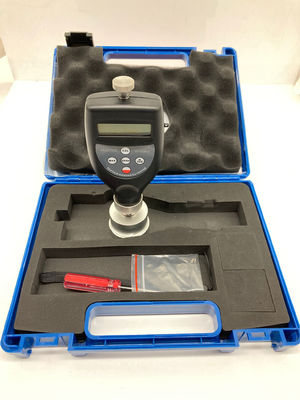

HT-6590-5 TTextile Winding Density Tester Warp Durometer with Convertible Probe HT-6590-5 TTextile Winding Density Tester Warp Durometer with Convertible Probe

Large Image :  HT-6590-5 TTextile Winding Density Tester Warp Durometer with Convertible Probe

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: CE
Model Number: HT-6590-5
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: USD275/set - USD310/set
Packaging Details: Carton packing box
Delivery Time: 7-10 working days after receipt of your payment
Payment Terms: T/T,Paypal
Supply Ability: 10sets/Month
Contact Now

HT-6590-5 TTextile Winding Density Tester Warp Durometer with Convertible Probe

Description
Indenter: Ball Φ5mm Display Range: 0-100H (hardness Graduation Marks)
Testing Range: 10-90H (hardness Graduation Marks) Resolution: 0.1H
Accuracy: ≤±1H Test Pressure: Approx. 12.5N
Measuring Spring Force: 0.55-8.065N Scale Diameter: 51mm
Operating: Temperature:0~40ºC Humidity:<80%RH
Highlight:

Textile winding density tester

,

Warp durometer with convertible probe

,

Non-destructive textile testing equipment

HT-6590-5 Textile Winding Density Tester Warp Durometer with Convertible Probe


Features

* Convertible probe, the curved end of the probe is used for the bobbin with a diameter less than or equal to 400mm, and the flat end of the probe is suitable for the bobbin with a diameter greater than 400mm.

* With average calculate, peak value deposit function.

* Apply USB data output to connect with PC.

* Blue tooth data output option.

Model HT-6590-5
Parameters Tested value/Mean value/Max.value
Indenter Ball Φ5mm
Convertible Probe The curved end of the probe is used for the bobbin with a diameter less than or equal to 400mm, and the plane end of the probe is suitable for the bobbin with a diameter greater than 400mm
Area Of Application For loosely wound bobbins of synthetic fibers and closely wound natural fibers, yarns and threads
Display Range 0-100H (hardness graduation marks)
Testing Range 10-90H (hardness graduation marks)
Resolution 0.1H
Accuracy ≤±1H
Battery Indicator Low Battery Indicator
Auto Switch Off √
Depth Of Indentation 0-2.5mm
Test Pressure Approx. 12.5N
Measuring Spring Force 0.55-8.065N
Scale Diameter 51mm
Working Face Radius 55mm (when using the curved end of the probe)
Working Face Flat 45mmΦ (when using the plane end of the probe)
Operating Temperature:0~40ºC Humidity:<80%RH
Power Supply 2x1.5V AAA(UM-4)Battery
Dimensions 177x65x45mm
Weight Approx. 285g (Not including batteries)
Standard Accessories Main Unit
Carrying Case
Operation Manual, calibration certificate
Optional Accessories USB Data Cable with Software
Blue tooth Data Adapter with Software

Principle

The principle used to measure textile hardness is based on measuring the resistance force of the penetration of a ball against the spool under a known spring load. The measuring principle is the same as the Shore A hardness testing.


Application

To measure the winding density (hardness) of textile bobbins, beams, spools, cones, dye packages etc.

Indenter ball 5mm is for loosely wound bobbins of synthetic fibers and closely wound natural fibers, yarns and threads

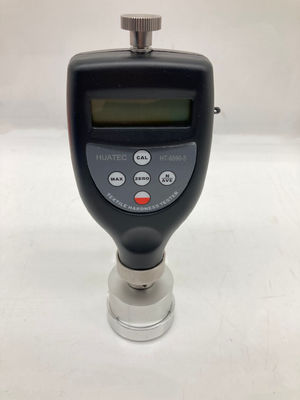

HT-6590-5 TTextile Winding Density Tester Warp Durometer with Convertible Probe 0HT-6590-5 TTextile Winding Density Tester Warp Durometer with Convertible Probe 1
